Cardiff model utilization for predicting the response of multiple-input power amplifiers

Azad, Ehsan M., Quaglia, Roberto ORCID:, Chadhary, Kauser, Bell, James J. ORCID: and Tasker, Paul J. ORCID: 2022. Cardiff model utilization for predicting the response of multiple-input power amplifiers. Presented at: Mediterrannean Microwave Symposium (MMS), Pizzo Calabro, Italy, 9-13 May 2022. Proceedings of Microwave Mediterranean Symposium (MMS). IEEE, 10.1109/MMS55062.2022.9825516

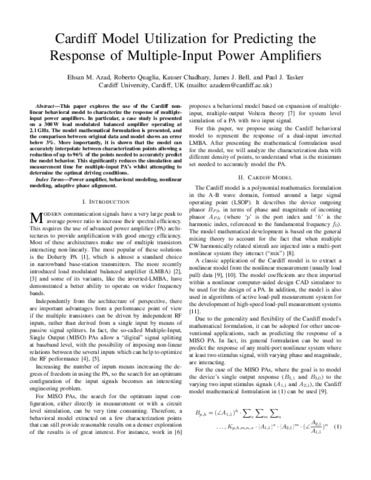

[thumbnail of LMBA_Paper (49).pdf]
PDF - Accepted Post-Print Version
Download (1MB) | Preview


This paper explores the use of the Cardiff non-linear behavioral model to characterize the response of multiple-input power amplifiers. In particular, a case study is presented on a 300 W load modulated balanced amplifier operating at 2.1 GHz. The model mathematical formulation is presented, and the comparison between original data and model shows an error below 3%. More importantly, it is shown that the model can accurately interpolate between characterization points allowing a reduction of up to 96% of the points needed to accurately predict the model behavior. This significantly reduces the simulation and measurement time for multiple-input PA's whilst attempting to determine the optimal driving conditions.

Item Type: Conference or Workshop Item (Paper)
Date Type: Publication
Status: Published
Schools: Engineering
Publisher: IEEE
ISBN: 9781665471114
ISSN: 2157-9822
Funders: Ampleon
Date of First Compliant Deposit: 22 July 2022
Date of Acceptance: 15 April 2022
