A compact ka-band active integrated antenna with a GaAs amplifier in a ceramic package

Song, Yexi, Wu, Yunqiu, Yang, Jie, Tian, Yin, Tong, Wei, Chen, Yijun, Wang, Cetian, Tang, Xiaohong, Benedikt, Johannes and Kang, Kai 2017. A compact ka-band active integrated antenna with a GaAs amplifier in a ceramic package. IEEE Antennas and Wireless Propagation Letters 16 , pp. 2416-2419. 10.1109/LAWP.2017.2721956

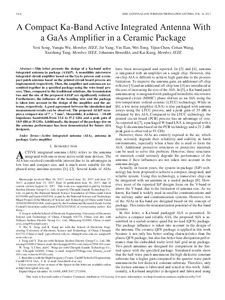

[thumbnail of Ka 07964664.pdf]
PDF - Published Version
Available under License Creative Commons Attribution.

Download (772kB) | Preview


This letter presents the design of a Ka-band active integrated antenna in package (AIAiP). A monolithic microwave integrated circuit amplifier based on the GaAs process and a compact patch antenna based on the printed circuit board process are implemented, respectively. Then, the amplifier and antenna are assembled together in a specified package using the wire-bond process. Thus, compared to the traditional solutions, the transmission loss and the size of the proposed AIAiP are significantly reduced. Furthermore, the influence of the bonding wire and the package is taken into account in the design of the amplifier and the antenna, respectively. A good agreement between the simulation and measurement results can be observed. The proposed AIAiP occupies a compact size of 7 × 7 mm2. Meanwhile, it achieves -10-dB impedance bandwidth from 33.4 to 37.2 GHz and a peak gain of 18.9 dBi at 35 GHz. Additionally, the impact of the package size on the antenna performance has been demonstrated for future AIA designers.

Item Type: Article
Date Type: Publication
Status: Published
Schools: Engineering
Publisher: IEEE
ISSN: 1536-1225
Date of First Compliant Deposit: 17 October 2017
Date of Acceptance: 23 June 2017
Last Modified: 17 Oct 2017 13:06
