High quality factor manganese-doped aluminum lumped-element kinetic inductance detectors sensitive to frequencies below 100 GHz

Jones, G., Johnson, B. R., Abitbol, M. H., Ade, Peter ORCID:, Bryan, S., Cho, H.-M., Day, P., Flanigan, D., Irwin, K. D., Li, D., Mauskopf, Philip ORCID:, McCarrick, H., Miller, A., Song, Y. R. and Tucker, Carole ORCID: 2017. High quality factor manganese-doped aluminum lumped-element kinetic inductance detectors sensitive to frequencies below 100 GHz. Applied Physics Letters 110 (22) , 222601. 10.1063/1.4984105

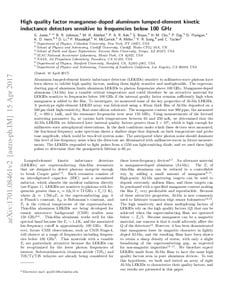

[thumbnail of 1701.08461.pdf]
PDF - Accepted Post-Print Version
Download (1MB) | Preview


Aluminum lumped-element kinetic inductance detectors (LEKIDs) sensitive to millimeter-wave photons have been shown to exhibit high quality factors, making them highly sensitive and multiplexable. The superconducting gap of aluminum limits aluminum LEKIDs to photon frequencies above 100 GHz. Manganese-doped aluminum (Al-Mn) has a tunable critical temperature and could therefore be an attractive material for LEKIDs sensitive to frequencies below 100 GHz if the internal quality factor remains sufficiently high when manganese is added to the film. To investigate, we measured some of the key properties of Al-Mn LEKIDs. A prototype eight-element LEKID array was fabricated using a 40 nm thick film of Al-Mn deposited on a 500 µm thick high-resistivity, float-zone silicon substrate. The manganese content was 900 ppm, the measured Tc = 694 ± 1mK, and the resonance frequencies were near 150 MHz. Using measurements of the forward scattering parameter S21 at various bath temperatures between 65 and 250 mK, we determined that the Al-Mn LEKIDs we fabricated have internal quality factors greater than 2 × 105 , which is high enough for millimeter-wave astrophysical observations. In the dark conditions under which these devices were measured, the fractional frequency noise spectrum shows a shallow slope that depends on bath temperature and probe tone amplitude, which could be two-level system noise. The anticipated white photon noise should dominate this level of low-frequency noise when the detectors are illuminated with millimeter-waves in future measurements. The LEKIDs responded to light pulses from a 1550 nm light-emitting diode, and we used these light pulses to determine that the quasiparticle lifetime is 60 µs.

Item Type: Article
Date Type: Publication
Status: Published
Schools: Physics and Astronomy
Subjects: Q Science > QB Astronomy
Q Science > QC Physics
Publisher: American Institute of Physics
ISSN: 0003-6951
Date of First Compliant Deposit: 7 December 2017
Date of Acceptance: 1 April 2017
