Systems integration of concentrator photovoltaics and thermoelectrics for enhanced energy harvesting

Rolley, Matthew 2018. Systems integration of concentrator photovoltaics and thermoelectrics for enhanced energy harvesting. PhD Thesis, Cardiff University.
Item availability restricted.

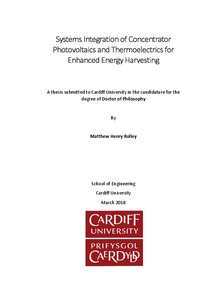

[thumbnail of 2018RolleyMHPhD.pdf]
PDF - Accepted Post-Print Version
Download (62MB) | Preview
[thumbnail of RolleyMH.pdf] PDF - Supplemental Material
Restricted to Repository staff only

Download (165kB)


Alongside other photovoltaic technologies, Concentrator photovoltaics (CPV) capitalise on the recent progress for high-efficiency III:V based multi-junction photovoltaic cells, combining them with low cost optics for increased power production. Thermoelectrics are semiconductor devices that can act as solid-state heat pumps (Peltier mode) or to generate electrical power from temperature differentials (Seebeck effect). In this work, new designs for the integration of a thermoelectric module within a CPV cell receiver were proposed and substantiated as a reliable and accurate temperature control platform. The thermoelectric was used for accurate and repeatable cooling, exhibiting high temporal-thermal sensitivity. Testing was done under varying irradiance and temperature conditions. A novel Closed Loop Integrated Cooler (CLIC) technique was tested, demonstrated and validated as a useful experimental metrology tool for measuring sub-degree cell temperature within hybrid devices using the material properties of the thermoelectric module. Proof-of-concept circuitry and a LabVIEW based deployment of the technique were designed built and characterised. The technique was able to detect thermal anomalies and fluctuations present when undertaking an I-V curve, something otherwise infeasible with a standard k or t-type thermocouple. A full CPV-TE hybrid module with primary and secondary optical elements (POE-SOE-CPV-TE) was built using a further optimised receiver design and tested on-sun for evaluation under outdoor operation conditions in southern Spain. A unique TE-based “self-soldering” process was investigated to improve manufacture repeatability, reproducibility and minimise thermal resistance. A manually-tracked gyroscopic test rig was designed, built and used to gain valuable outdoor baseline comparison data for a commercially available CPV module and a Heterojunction Intrinsic Thinlayer (HIT) flat plate panel with the POE-SOE-CPV-TE hybrid device. An energetic break-even between the power consumed by the TE and the power gain of the CPV cell from induced temperature change was experimentally measured. This work demonstrated the unique functionalities a thermoelectric device can improve CPV power generation. The potential of a TEM to improve CPV power generation through active cooling was highlighted and quantified.

Item Type: Thesis (PhD)
Date Type: Completion
Status: Unpublished
Schools: Engineering
Uncontrolled Keywords: Photovoltaics; Thermo electrics; Hybrid; Optoelectronics; Renewable Energy; III:V Semiconductors.
Date of First Compliant Deposit: 16 May 2018
