El-Hiti, Gamal A., Smith, Keith, Alamri, Mesfer, Morris, Ceri A., Kille, Peter ORCID: and Kariuki, Benson M. ORCID: 2018. 5-Bromo-1-(4-bromophenyl)isatin. IUCrData 3 (3) , x180426. 10.1107/S2414314618004261

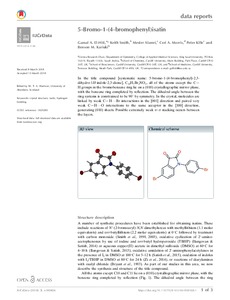

[thumbnail of hb4216.pdf]
PDF - Published Version
Available under License Creative Commons Attribution.

Download (580kB) | Preview


In the title compound [systematic name: 5-bromo-1-(4-bromo­phen­yl)-2,3-di­hydro-1H-indole-2,3-dione], C14H7Br2NO2, all of the atoms except the C—H groups in the bromo­benzene ring lie on a (010) crystallographic mirror plane, with the benzene ring completed by reflection. The dihedral angle between the ring systems is constrained to be 90° by symmetry. In the crystal, mol­ecules are linked by weak C—H...Br inter­actions in the [001] direction and paired very weak C—H...O inter­actions to the same acceptor in the [100] direction, generating (010) sheets. Possible extremely weak π–π stacking occurs between the layers.

Item Type: Article
Date Type: Publication
Status: Published
Schools: Medicine
Publisher: International Union of Crystallography: Open Access / International Union of Crystallography
ISSN: 2414-3146
Date of First Compliant Deposit: 7 June 2018
Date of Acceptance: 13 March 2018
Last Modified: 22 Oct 2023 10:56
