Non-invasive damage detection in beams using marker extraction and wavelets

Song, Y.Z, Bowen, C.R., Kim, Hyunsun Alicia ORCID:, Nassehi, A, Padget, J.A, Gathercole N, N. and Dent, N. 2014. Non-invasive damage detection in beams using marker extraction and wavelets. Mechanical Systems and Signal Processing 49 (1-2) , pp. 13-23. 10.1016/j.ymssp.2013.12.011

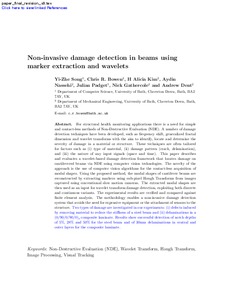

[thumbnail of Kim A - Non-invasive damage ....pdf]
PDF - Accepted Post-Print Version
Download (2MB) | Preview


For structural health monitoring applications there is a need for simple and contact-less methods of Non-Destructive Evaluation (NDE). A number of damage detection techniques have been developed, such as frequency shift, generalised fractal dimension and wavelet transforms with the aim to identify, locate and determine the severity of damage in a material or structure. These techniques are often tailored for factors such as (i) type of material, (ii) damage pattern (crack, delamination), and (iii) the nature of any input signals (space and time). This paper describes and evaluates a wavelet-based damage detection framework that locates damage on cantilevered beams via NDE using computer vision technologies. The novelty of the approach is the use of computer vision algorithms for the contact-less acquisition of modal shapes. Using the proposed method, the modal shapes of cantilever beams are reconstructed by extracting markers using sub-pixel Hough Transforms from images captured using conventional slow motion cameras. The extracted modal shapes are then used as an input for wavelet transform damage detection, exploiting both discrete and continuous variants. The experimental results are verified and compared against finite element analysis. The methodology enables a non-invasive damage detection system that avoids the need for expensive equipment or the attachment of sensors to the structure. Two types of damage are investigated in our experiments: (i) defects induced by removing material to reduce the stiffness of a steel beam and (ii) delaminations in a (0/90/0/90/0)s composite laminate. Results show successful detection of notch depths of 5%, 28% and 50% for the steel beam and of 30 mm delaminations in central and outer layers for the composite laminate.
