Quantifying temperature-dependent substrate loss in GaN-on-Si RF technology

Chandrasekar, Hareesh, Uren, Michael J., Casbon, Michael A. ORCID:, Hirshy, Hassan ORCID:, Eblabla, Abdalla ORCID:, Elgaid, Khaled ORCID:, Pomeroy, James W., Tasker, Paul J. ORCID: and Kuball, Martin 2019. Quantifying temperature-dependent substrate loss in GaN-on-Si RF technology. IEEE Transactions on Electron Devices 66 (4) , pp. 1681-1687. 10.1109/TED.2019.2896156

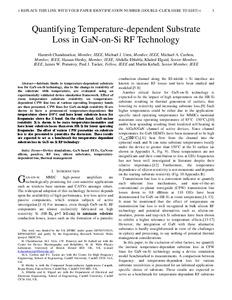

[thumbnail of Casbon M - Quantifying Temperature-dependent Substrate.pdf]
PDF - Accepted Post-Print Version
Download (1MB) | Preview


Intrinsic limits to temperature-dependent substrate loss for GaN-on-Si technology, due to the change in resistivity of the substrate with temperature, are evaluated using an experimentally validated device simulation framework. Effect of room temperature substrate resistivity on temperature-dependent coplanar waveguide (CPW) line loss at various operating frequency bands is then presented. CPW lines for GaN-on-high-resistivity Si are shown to have a pronounced temperature dependence for temperatures above 150 °C and have lower substrate losses for frequencies above the X-band. On the other hand, GaN-on-low-resistivity Si is shown to be more temperature insensitive and has lower substrate losses than even highly resistive Si for lower operating frequencies. The effect of various CPW geometries on substrate loss is also presented to generalize the discussion. These results are expected to act as a benchmark for temperature-dependent substrate loss in GaN-on-Si RF technology.

Item Type: Article
Date Type: Publication
Status: Published
Schools: Engineering
Publisher: Institute of Electrical and Electronics Engineers (IEEE)
ISSN: 0018-9383
Date of First Compliant Deposit: 8 April 2019
Date of Acceptance: 27 January 2019
Last Modified: 17 Nov 2023 19:02

Citation Data

Cited 15 times in Scopus. View in Scopus. Powered By Scopus® Data
