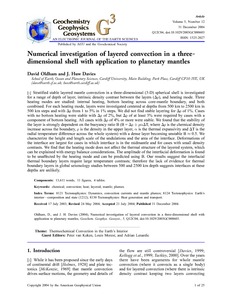

Numerical investigation of layered convection in a three-dimensional shell with application to planetary mantles

Oldham, David N. and Davies, John Huw ORCID: https://orcid.org/0000-0003-2656-0260 2004. Numerical investigation of layered convection in a three-dimensional shell with application to planetary mantles. Geochemistry Geophysics Geosystems 5 (12) , pp. 1-25. 10.1029/2003GC000603

Preview

PDF Download (1MB) | Preview

Abstract

Stratified stable layered mantle convection in a three-dimensional (3-D) spherical shell is investigated for a range of depth of layer, intrinsic density contrast between the layers (Δρ), and heating mode. Three heating modes are studied: internal heating, bottom heating across core-mantle boundary, and both combined. For each heating mode, layers were investigated centered at depths from 500 km to 2500 km in 500 km steps and with Δρ from 1 to 5% in 1% steps. We did not find stable layering for Δρ of 1%. Cases with no bottom heating were stable with Δρ of 2%, but Δρ of at least 3% were required by cases with a component of bottom heating. All cases with Δρ of 4% or more were stable. We found that the stability of the layer is strongly dependent on the buoyancy ratio B (B = Δρ ÷ ραΔT, where Δρ is the chemical density increase across the boundary, ρ is the density in the upper layer, α is the thermal expansivity and ΔT is the radial temperature difference across the whole system) with a dense layer becoming unstable B ≈ 0.5. We characterize the height and length scale of the undulations and the area of the interface. Deformations of the interface are largest for cases in which interface is in the midmantle and for cases with small density contrasts. We find that the heating mode does not affect the thermal structure of the layered system, which can be explained with energy balance considerations. The amplitude of the interfacial deformation is found to be unaffected by the heating mode and can be predicted using B. Our results suggest the interfacial thermal boundary layers require large temperature contrasts; therefore the lack of evidence for thermal boundary layers in global seismology studies between 500 and 2500 km depth suggests interfaces at these depths are unlikely.

Item Type:	Article
Date Type:	Publication
Status:	Published
Schools:	Earth and Environmental Sciences
Subjects:	Q Science > QE Geology
Uncontrolled Keywords:	chemical; convection; heat; layered; mantle; plumes
Additional Information:	Q12C04
Publisher:	American Geophysical Union.
ISSN:	1525-2027
Last Modified:	08 May 2023 12:35
URI:	https://orca.cardiff.ac.uk/id/eprint/1332
