A generalized multilevel inverter based on T-Type switched capacitor module with reduced devices

Wang, Yaoqiang, Yuan, Yisen, Li, Gen ORCID:, Chen, Tianjin, Wang, Kewen and Liang, Jun ORCID: 2020. A generalized multilevel inverter based on T-Type switched capacitor module with reduced devices. Energies 13 (17) , 4406. 10.3390/en13174406

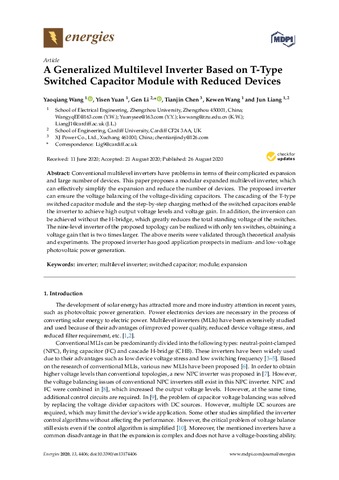

[thumbnail of energies-13-04406.pdf]
PDF - Published Version
Available under License Creative Commons Attribution.

Download (5MB) | Preview


Conventional multilevel inverters have problems in terms of their complicated expansion and large number of devices. This paper proposes a modular expanded multilevel inverter, which can effectively simplify the expansion and reduce the number of devices. The proposed inverter can ensure the voltage balancing of the voltage-dividing capacitors. The cascading of the T-type switched capacitor module and the step-by-step charging method of the switched capacitors enable the inverter to achieve high output voltage levels and voltage gain. In addition, the inversion can be achieved without the H-bridge, which greatly reduces the total standing voltage of the switches. The nine-level inverter of the proposed topology can be realized with only ten switches, obtaining a voltage gain that is two times larger. The above merits were validated through theoretical analysis and experiments. The proposed inverter has good application prospects in medium- and low-voltage photovoltaic power generation.

Item Type: Article
Date Type: Publication
Status: Published
Schools: Engineering
Publisher: MDPI
ISSN: 1996-1073
Date of First Compliant Deposit: 26 August 2020
Date of Acceptance: 21 August 2020
Last Modified: 05 May 2023 07:46
