Observation of substituent effects in the electrochemical adsorption and hydrogenation of alkynes on Pt{hkl} using SHINERS

Guan, Shaoliang, Attard, Gary A. and Wain, Andrew J. 2020. Observation of substituent effects in the electrochemical adsorption and hydrogenation of alkynes on Pt{hkl} using SHINERS. ACS Catalysis 10 , pp. 10999-11010. 10.1021/acscatal.0c02967

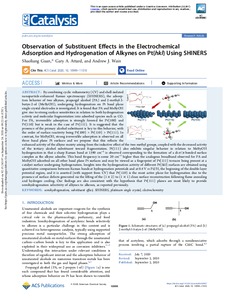

[thumbnail of acscatal.0c02967 (1).pdf]
PDF - Published Version
Available under License Creative Commons Attribution.

Download (3MB) | Preview
License URL:
License Start date: 2 September 2020


By combining cyclic voltammetry (CV) and shell-isolated nanoparticle-enhanced Raman spectroscopy (SHINERS), the adsorption behavior of two alkynes, propargyl alcohol (PA) and 2-methyl-3-butyn-2-ol (MeByOH), undergoing hydrogenation on Pt basal plane single-crystal electrodes is investigated. It is found that PA and MeByOH give rise to strong surface sensitivities in relation to both hydrogenation activity and molecular fragmentation into adsorbed species such as CO. For PA, irreversible adsorption is strongly favored for Pt{100} and Pt{110} but is weak in the case of Pt{111}. It is suggested that the presence of the primary alcohol substituent is key to this behavior, with the order of surface reactivity being Pt{100} > Pt{110} > Pt{111}. In contrast, for MeByOH, strong irreversible adsorption is observed on all three basal plane Pt surfaces and we propose that this reflects the enhanced activity of the alkyne moiety arising from the inductive effect of the two methyl groups, coupled with the decreased activity of the tertiary alcohol substituent toward fragmentation. Pt{111} also exhibits singular behavior in relation to MeByOH hydrogenation in that a sharp Raman band at 1590 cm–1 is observed corresponding to the formation of a di-σ/π-bonded surface complex as the alkyne adsorbs. This band frequency is some 20 cm–1 higher than the analogous broadband observed for PA and MeByOH adsorbed on all other basal plane Pt surfaces and may be viewed as a fingerprint of Pt{111} terraces being present at a catalyst surface undergoing hydrogenation. Insights into the hydrogenation activity of different Pt{hkl} surfaces are obtained using quantitative comparisons between Raman bands at hydrogenation potentials and at 0.4 V vs Pd/H, the beginning of the double-layer potential region, and it is asserted (with support from CV) that Pt{110} is the most active plane for hydrogenation due to the presence of surface defects generated via the lifting of the (1 × 2) to (1 × 1) clean surface reconstruction following flame annealing and hydrogen cooling. Our findings are also consistent with the hypothesis that Pt{111} planes are most likely to provide semihydrogenation selectivity of alkynes to alkenes, as reported previously.

Item Type: Article
Date Type: Published Online
Status: Published
Schools: Chemistry
Cardiff Catalysis Institute (CCI)
Publisher: American Chemical Society
ISSN: 2155-5435
Funders: EPSRC
Date of First Compliant Deposit: 24 September 2020
Date of Acceptance: 2 September 2020
