Element mapping the Merensky Reef of the Bushveld Complex

Smith, W. D. ORCID:, Maier, W. D. ORCID:, Barnes, S. J., Moorhead, G., Reid, D. and Karykowski, B. 2021. Element mapping the Merensky Reef of the Bushveld Complex. Geoscience Frontiers 12 (3) 10.1016/j.gsf.2020.11.001

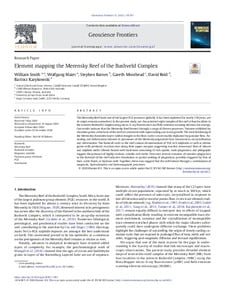

[thumbnail of 1-s2.0-S1674987120302413-main.pdf]
PDF - Published Version
Available under License Creative Commons Attribution Non-commercial No Derivatives.

Download (13MB) | Preview


The Merensky Reef hosts one of the largest PGE resources globally. It has been exploited for nearly 100 years, yet its origin remains unresolved. In the present study, we characterised eight samples of the reef at four localities in the western Bushveld Complex using micro-X-ray fluorescence and field emission scanning electron microscopy. Our results indicate that the Merensky Reef formed through a range of diverse processes. Textures exhibited by chromite grains at the base of the reef are consistent with supercooling and in situ growth. The local thickening of the Merensky chromitite layers within troughs in the floor rocks is most readily explained by granular flow. Annealing and deformation textures in pyroxenes of the Merensky pegmatoid bear testament to recrystallisation and deformation. The footwall rocks to the reef contain disseminations of PGE rich sulphides as well as olivine grains with peritectic reaction rims along their upper margins suggesting reactive downward flow of silicate and sulphide melts. Olivine-hosted melt inclusions containing Cl-rich apatite, sodic plagioclase, and phlogopite suggest the presence of highly evolved, volatile-rich melts. Pervasive reverse zonation of cumulus plagioclase in the footwall of the reef indicates dissolution or partial melting of plagioclase, possibly triggered by flux of heat, acidic fluids, or hydrous melt. Together, these data suggest that the reef formed through a combination of magmatic, hydrodynamic and hydromagmatic processes.

Item Type: Article
Date Type: Publication
Status: Published
Schools: Earth and Environmental Sciences
Additional Information: This is an open access article under the CC BY-NC-ND license (
Publisher: Elsevier
ISSN: 1674-9871
Date of First Compliant Deposit: 4 December 2020
Date of Acceptance: 4 November 2020
