Coordinated control of DC circuit breakers in multilink HVDC grids

Zhao, Xibei, Xu, Jianzhong, Li, Gen ORCID:, Yuan, Jinsha and Liang, Jun ORCID: 2023. Coordinated control of DC circuit breakers in multilink HVDC grids. CSEE Journal of Power and Energy Systems 9 (6) , pp. 2224-2235. 10.17775/CSEEJPES.2020.05170

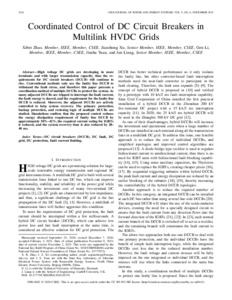

[thumbnail of Coordinated_Control_of_DC_Circuit_Breakers_in_Multilink_HVDC_Grids.pdf]
PDF - Published Version
Available under License Creative Commons Attribution Non-commercial No Derivatives.

Download (1MB) | Preview


High voltage DC grid is developing towards more terminals and larger transmission capacity, thus the requirements for DC circuit breakers (DCCB) will rise. The conventional methods only use the faulty line DCCB to withstand the fault stress, while this paper presents a coordination method of multiple DCCBs to protect the system. As many adjacent DCCBs are tripped to interrupt the fault current, the fault energy is shared, and the requirement for the faulty line DCCB is reduced. Moreover, the adjacent DCCBs are actively controlled to help system recovery. The primary protection, backup protection, and reclosing logic of multiple DCCB are studied. Simulation confirms that the proposed control reduces the energy dissipation requirement of faulty line DCCB by around 30–42 %, the required current rating for IGBTs is reduced, and the system recovery time reduced by 20–40 ms.

Item Type: Article
Date Type: Publication
Status: Published
Schools: Engineering
Publisher: IEEE
ISSN: 2096-0042
Date of First Compliant Deposit: 22 March 2021
Date of Acceptance: 3 February 2021
Last Modified: 24 Jan 2024 13:52
