An energy absorbing method for hybrid mmcs to avoid full-bridge submodule overvoltage during DC fault blocking

Fang, Xiongfeng, Li, Gen, Chen, Canfeng, Wang, Dongyu, Xiong, Jian and Zhang, Kai 2022. An energy absorbing method for hybrid mmcs to avoid full-bridge submodule overvoltage during DC fault blocking. IEEE Transactions on Power Electronics 37 (5) , pp. 4947-4951. 10.1109/TPEL.2021.3130766

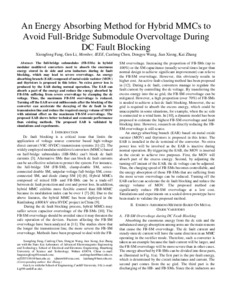

[thumbnail of TPEL-Letter-2021-09-0416 Final.pdf]
Preview
PDF - Accepted Post-Print Version
Download (717kB) | Preview

Abstract

The full-bridge submodules (FB-SMs) in hybrid modular multilevel converters need to absorb the enormous energy stored in dc side and arm inductors during dc fault blocking, which may lead to severe overvoltage. An energy absorbing branch (EAB) composed of metal oxide varistor (MOV) and thyristors is proposed in this letter. No extra power loss is produced by the EAB during normal operation. The EAB can absorb a part of the energy and reduce the energy absorbed by FB-SMs suffering from severe overvoltage by clamping the dc voltage. Thus, the maximum FB-SM overvoltage is reduced. Turning off the EAB several milliseconds after the blocking of the converter can accelerate the decaying of the dc fault in the transmission line and reduce the required energy volume of MOV with minimal effect on the maximum FB-SM overvoltage. The proposed EAB shows better technical and economic performance than existing methods. The proposed EAB is validated by simulations and experiments.

Item Type: Article
Date Type: Publication
Status: Published
Schools: Engineering
Publisher: Institute of Electrical and Electronics Engineers
ISSN: 0885-8993
Date of First Compliant Deposit: 23 November 2021
Date of Acceptance: 18 November 2021
Last Modified: 07 Mar 2022 16:22
URI: https://orca.cardiff.ac.uk/id/eprint/145691
