Demonstration of converter control Interactions in MMC-HVDC systems

Chen, Jinlei, Wang, Sheng ORCID: https://orcid.org/0000-0002-2258-2633, Ugalde Loo, Carlos E. ORCID: https://orcid.org/0000-0001-6361-4454, Ming, Wenlong ORCID: https://orcid.org/0000-0003-1780-7292, Adeuyi, Oluwole D., D'Arco, Salvatore, Ceballos, Salvador, Parker, Max, Finney, Stephen, Pitto, Andrea, Cirio, Diego and Azpiri, Iñigo 2022. Demonstration of converter control Interactions in MMC-HVDC systems. Electronics 11 (2) , 175. 10.3390/electronics11020175

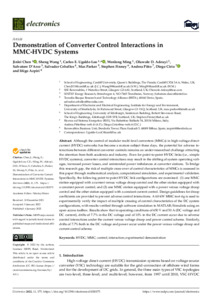

[thumbnail of electronics-11-00175-v3.pdf]
Preview
PDF - Published Version
Available under License Creative Commons Attribution.

Download (19MB) | Preview

Abstract

Although the control of modular multi-level converters (MMCs) in high-voltage direct-current (HVDC) networks has become a mature subject these days, the potential for adverse interactions between different converter controls remains an under-researched challenge attracting the attention from both academia and industry. Even for point-to-point HVDC links (i.e., simple HVDC systems), converter control interactions may result in the shifting of system operating voltages, increased power losses, and unintended power imbalances at converter stations. To bridge this research gap, the risk of multiple cross-over of control characteristics of MMCs is assessed in this paper through mathematical analysis, computational simulation, and experimental validation. Specifically, the following point-to-point HVDC link configurations are examined: (1) one MMC station equipped with a current versus voltage droop control and the other station equipped with a constant power control; and (2) one MMC station equipped with a power versus voltage droop control and the other station equipped with a constant current control. Design guidelines for droop coefficients are provided to prevent adverse control interactions. A 60-kW MMC test-rig is used to experimentally verify the impact of multiple crossing of control characteristics of the DC system configurations, with results verified through software simulation in MATLAB/Simulink using an open access toolbox. Results show that in operating conditions of 650 V and 50 A (DC voltage and DC current), drifts of 7.7% in the DC voltage and of 10% in the DC current occur due to adverse control interactions under the current versus voltage droop and power control scheme. Similarly, drifts of 7.7% both in the DC voltage and power occur under the power versus voltage droop and current control scheme.

Item Type: Article
Date Type: Publication
Status: Published
Schools: Engineering
Additional Information: This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https:// creativecommons.org/licenses/by/ 4.0/)
Publisher: MDPI
ISSN: 2079-9292
Funders: CEU
Date of First Compliant Deposit: 12 January 2022
Date of Acceptance: 5 January 2022
Last Modified: 29 Nov 2022 10:30
URI: https://orca.cardiff.ac.uk/id/eprint/146543
