Multi-terminal DC grid with wind power injection

Samaranayake, Lilantha, Ugalde Loo, Carlos E., Adeuyi, Oluwole D., Licari, John and Ekanayake, Janaka B. 2022. Multi-terminal DC grid with wind power injection. Wind 2 (1) , pp. 17-36. 10.3390/wind2010002

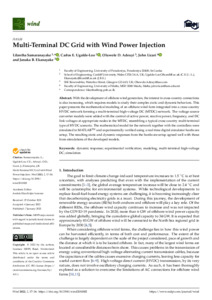

[thumbnail of wind-02-00002-v3.pdf]
PDF - Published Version
Available under License Creative Commons Attribution.

Download (2MB) | Preview


With the development of offshore wind generation, the interest in cross-country connections is also increasing, which requires models to study their complex static and dynamic behaviors. This paper presents the mathematical modeling of an offshore wind farm integrated into a cross-country HVDC network forming a multi-terminal high-voltage DC (MTDC) network. The voltage source converter models were added with the control of active power, reactive power, frequency, and DC link voltages at appropriate nodes in the MTDC, resembling a typical cross-country multi-terminal type of HVDC scenario. The mathematical model for the network together with the controllers were simulated in MATLABTM and experimentally verified using a real-time digital simulator hardware setup. The resulting static and dynamic responses from the hardware setup agreed well with those from simulations of the developed models.

Item Type: Article
Date Type: Publication
Status: Published
Schools: Engineering
Additional Information: This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https:// 4.0/)
Publisher: MDPI
ISSN: 2674-032X
Date of First Compliant Deposit: 12 January 2022
Date of Acceptance: 4 January 2022
Last Modified: 17 Jan 2022 10:30
