Exploring the excited-state charge transfer fluorescence profile of 7-hydroxycoumarin and 2-methylimidazole – a combined X-ray diffraction and theoretical approach

Hawkins, Bryson A., Najib, Elias, Du, Jonathan J., Lai, Felcia, Platts, James A. ORCID: https://orcid.org/0000-0002-1008-6595, Groundwater, Paul W. and Hibbs, David E. 2022. Exploring the excited-state charge transfer fluorescence profile of 7-hydroxycoumarin and 2-methylimidazole – a combined X-ray diffraction and theoretical approach. Physical Chemistry Chemical Physics 24 (21) , pp. 13015-13025. 10.1039/D2CP01235A

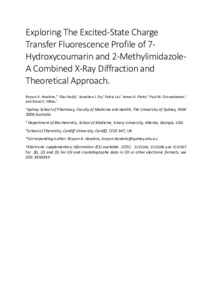

[thumbnail of ExploringTheExcited-StateChargeTransferFluorescenceProfileof7-Hydroxycoumarinand2-Methylimidazole_accepted.pdf]
Preview
PDF - Accepted Post-Print Version
Download (1MB) | Preview

Abstract

This study investigated the effect of 2-methylimidazole (2-MIM) addition on the fluorescence of ethyl-7-hydroxy-2-oxo-2H-chromene-3-carboxylate using low-cost density functional theory (DFT) and Time-Dependent DFT calculations on single crystal X-ray geometries of ethyl-7-hydroxy-2-oxo-2H-chromene-3-carboxylate hydrate (1), 2-MIM (2), and the 1 : 1 co-crystal of (1) and (2), (3). At low concentrations (1 : 1–1 : 10) of 2-MIM, the fluorophore shows a decrease in the fluorescence intensity, but at higher concentrations (above 1 : 10) the fluorescence excitation maximum shifted from 354 nm to 405 nm, with a significant emission intensity increase. The changed excitation and emission profile at high concentrations is due to the deprotonation of the coumarin's phenolic group, which was confirmed by the increased shielding of the aromatic protons in the titration 1H NMR spectra. The experimental fluorescence data between the 1 : 1 and 1 : 10 ratios agreed with the theoretical fluorescence data, with a redshift and decreased intensity when comparing (1) and (3). The data indicated that combining the fluorophore with 2-MIM increased levels of vibronic coupling between 2-MIM and the fluorophore decreasing de-excitation efficiency. These increased vibronic changes were due to charge transfer between the fluorophore and 2-MIM in (3). The subtle movement of the proton, H(5) toward N(2′) (0.07 Å) caused a significant decrease in fluorescence due to electron density distribution (EDD) changes. This was identified by comparison of the EDD in the excited (S1) and ground (S0) states plotted as an isosurface of EDD difference. For the higher concentrations, an alternative excitation pathway was explored by modifying the crystal geometry of (3) based on 1H NMR spectroscopy data to resemble excitoplexes. Theses excitoplex geometries reflected the fluorescence profile of the fluorophore with high concentrations of 2-MIM; there were dramatic changes in the theoretical fluorescence pathway, which was 100% vibronic coupling compared to 15.31% in the free fluorophore. At this concentration, the de-excitation pathway causes remodelling of the lactone ring via stretching/breaking the C[double bond, length as m-dash]O bond in the S1 causing increased fluorescence by movement of the transition dipole moment. These results reflect previous studies, but the methods used are less experimentally and computationally expensive. This study is among the first to explain charge transfer fluorescence using crystalline geometries. This study will be of interest to the fields of crystal engineering and fluorescence spectroscopy.

Item Type: Article
Date Type: Publication
Status: Published
Schools: Chemistry
Publisher: Royal Society of Chemistry
ISSN: 1463-9076
Date of First Compliant Deposit: 27 June 2022
Date of Acceptance: 11 May 2022
Last Modified: 09 Nov 2023 10:08
URI: https://orca.cardiff.ac.uk/id/eprint/150819
