Seafloor overthrusting causes ductile fault deformation and fault sealing along the Northern Hikurangi Margin

Morgan, Julia K., Solomon, Evan A., Fagereng, Ake ORCID:, Savage, Heather M., Wang, Maomao, Meneghini, Francesca, Barnes, Philip M., Bell, Rebecca E., French, Melodie E., Bangs, Nathan L., Kitajima, Hiroko, Saffer, Demian M. and Wallace, Laura M. 2022. Seafloor overthrusting causes ductile fault deformation and fault sealing along the Northern Hikurangi Margin. Earth and Planetary Science Letters 593 , 117651. 10.1016/j.epsl.2022.117651
Item availability restricted.

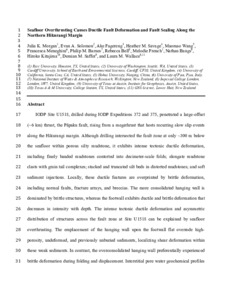

[thumbnail of SeafloorOverthrusting2022-v5.pdf] PDF - Accepted Post-Print Version
Restricted to Repository staff only until 16 June 2023 due to copyright restrictions.
Available under License Creative Commons Attribution Non-commercial No Derivatives.

Download (4MB)
License URL:
License Start date: 16 June 2023


IODP Site U1518, drilled during IODP Expeditions 372 and 375, penetrated a large-offset (∼6 km) thrust, the Pāpaku fault, rising from a megathrust that hosts recurring slow slip events along the Hikurangi margin. Although drilling intersected the fault zone at only ∼300 m below the seafloor within porous silty mudstone, it exhibits intense tectonic ductile deformation, including finely banded mudstones contorted into decimeter-scale folds; elongate mudstone clasts with grain tail complexes; stacked and truncated silt beds in distorted mudstones; and soft sediment injections. Locally, these ductile features are overprinted by brittle deformation, including normal faults, fracture arrays, and breccias. The more consolidated hanging wall is dominated by brittle structures, whereas the footwall exhibits ductile and brittle deformation that decreases in intensity with depth. The intense tectonic ductile deformation and asymmetric distribution of structures across the fault zone at Site U1518 can be explained by seafloor overthrusting. The emplacement of the hanging wall upon the footwall flat overrode high-porosity, undeformed, and previously unburied sediments, localizing shear deformation within these weak sediments. In contrast, the overconsolidated hanging wall preferentially experienced brittle deformation during folding and displacement. Interstitial pore water geochemical profiles at Site U1518 show a repetition of near-seafloor diagenetic sequences below the fault, consistent with overthrusting of previously unburied strata. The preserved diagenetic profiles in the footwall suggest that overthrusting occurred within the last 50-100 kyr, and indicate little along- or across-fault fluid flow at the location of Site U1518. Thus the Pāpaku fault appears to define a low-permeability seal that restricts footwall consolidation, maintaining locally high pore fluid pressures and low fault strength. If similar low permeability structures occur elsewhere along the margin, they could support regionally high pore pressure conditions favorable to the occurrence of SSEs on the Hikurangi megathrust fault.

Item Type: Article
Date Type: Publication
Status: Published
Schools: Earth and Environmental Sciences
Additional Information: License information from Publisher: LICENSE 1: URL:, Start Date: 2023-06-16
Publisher: Elsevier
ISSN: 0012-821X
Date of First Compliant Deposit: 25 August 2022
Date of Acceptance: 30 May 2022
Last Modified: 10 Nov 2022 17:34
