A DFT study of the catalytic ODH of n-hexane over a cluster model of vanadium oxide

Damoyi, Nkululeko E., Friedrich, Holger B., Kruger, Gert H. and Willock, David J. ORCID: https://orcid.org/0000-0002-8893-1090 2023. A DFT study of the catalytic ODH of n-hexane over a cluster model of vanadium oxide. Molecular Catalysis 541 , 113078. 10.1016/j.mcat.2023.113078

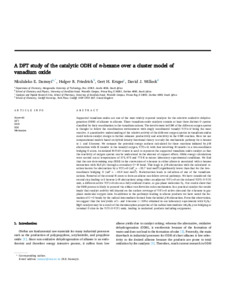

Preview

PDF - Accepted Post-Print Version Available under License Creative Commons Attribution Non-commercial No Derivatives. Download (2MB) | Preview

Abstract

Supported vanadium oxides are one of the most widely reported catalysts for the selective oxidative dehydrogenation (ODH) of alkanes to alkenes. These vanadium oxide catalysts contain at least three distinct O species classified by their coordination to the vanadium cations. The involvement in ODH of the different oxygen species is thought to follow the coordination environment with singly coordinated vanadyl V(V)=O being the most reactive. A quantitative understanding of the relative activity of the different oxygen species in vanadium oxides could inform catalyst design to further enhance productivity and selectivity in the ODH reaction. Here we use computational models based on hybrid density functional theory to study the mechanistic pathway for n-hexane to 1- and 2-hexene. We compare the potential energy surfaces calculated for these reactions initiated by β-H abstraction with H transfer to the vanadyl oxygen, V(V)=O, with that involving H transfer to a two-coordinate bridging O atom. An isolated H4V2O7 cluster is used to represent the supported vanadium oxide catalyst so that the reactivity of oxygen species can be understood in the absence of support effects. Gibbs energy calculations were carried out at temperatures of 573, 673 and 773 K to mirror laboratory experimental conditions. We find that the rate-determining step (RDS) in the conversion of n-hexane to either alkene is associated with n-hexane interaction with H4V2O7 through a secondary Csingle bondH bond. This leads to β-H abstraction with the calculated reaction barrier for abstraction by a V(V)=O (ΔE‡ = +32.7 kcal mol−1) significantly lower than that for the two-coordinate bridging O (ΔE‡ = +43.9 kcal mol−1). H-abstraction leads to reduction of one of the vanadium cations. Removal of the second H atom to form an alkene can follow several pathways. We have considered the second step leading to 2-hexene (γ-H abstraction) using either an adjacent V(V)=O on the reduced V(IV)-O-V(V) unit, a different active V(V)=O site on a fully oxidised cluster, or gas-phase molecular O2. Our results show that the ODH process is likely to proceed via a Mars-van Krevelen redox mechanism. In a practical catalyst the results imply that catalyst activity will depend on the surface coverage of V(V)=O active sites and the n-hexane to gas-phase molecular oxygen ratio. In addition to the pathways leading to alkene products we have noted the formation of Csingle bondO bonds by the radical intermediate formed from the initial β-H abstraction. From this observation, we suggest that the low yields of 1- and 2-hexene (< 20%) obtained in our laboratory experiments with V2O5/MgO catalysts may be a result of the chemisorption properties of the radical intermediate (∙C6H13) on bridging or terminal O sites in the V(V)-O-V(V) units, leading to undesired products including oxygenates.

Item Type:	Article
Date Type:	Publication
Status:	Published
Schools:	Chemistry Cardiff Catalysis Institute (CCI)
Publisher:	Elsevier
ISSN:	2468-8231
Funders:	NRF, SASOL Ltd and Johnson Matthey
Date of First Compliant Deposit:	4 May 2023
Date of Acceptance:	9 March 2023
Last Modified:	29 Mar 2024 17:12
URI:	https://orca.cardiff.ac.uk/id/eprint/159203
