Electro-thermal coupling for simulation of 52 kV polymeric bushing with nonlinear ZnO microvaristor under different environmental conditions

Aboshwerb, Mohamed, Albano, Maurizio ORCID: https://orcid.org/0000-0002-5486-4299 and Haddad, M 2024. Electro-thermal coupling for simulation of 52 kV polymeric bushing with nonlinear ZnO microvaristor under different environmental conditions. Presented at: Cardiff University Engineering Research Conference 2023, Cardiff, UK, 12-14 July 2023. Published in: Spezi, Emiliano and Bray, Michaela eds. Proceedings of the Cardiff University Engineering Research Conference 2023. Cardiff: Cardiff University Press, pp. 191-195. 10.18573/conf1.aq

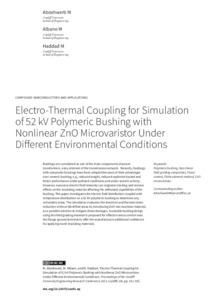

Preview

PDF - Published Version Available under License Creative Commons Attribution Non-commercial No Derivatives. Download (1MB) | Preview

Abstract

Bushings are considered as one of the main components of power transformers, a key element of the transmission network. Recently, bushings with composite housings have been adopted because of their advantages over ceramic bushing, e.g., reduced weight, reduced explosive hazard and better performance under polluted conditions and under seismic activity. However, excessive electric field intensity can originate tracking and erosion effects on the insulating material affecting the withstand capabilities of the bushing. This paper investigates the electric field distribution coupled with temperature distribution on a 52 kV polymeric bushing to determine any vulnerable areas. The simulation evaluates the electrical and thermal stress reduction in these identified areas by introducing ZnO-microvaristor material, as a possible solution to mitigate these damages. A suitable bushing design using this field grading material is proposed for effective stress control near the flange ground terminal to offer the manufacturers additional confidence for applying novel insulating materials.

Item Type:	Conference or Workshop Item (Paper)
Date Type:	Publication
Status:	Published
Schools:	Engineering
Subjects:	G Geography. Anthropology. Recreation > GE Environmental Sciences Q Science > QC Physics T Technology > TA Engineering (General). Civil engineering (General) T Technology > TK Electrical engineering. Electronics Nuclear engineering
Additional Information:	Contents are extended abstracts of papers, not full papers
Publisher:	Cardiff University Press
ISBN:	978-1-9116-5349-3
Date of First Compliant Deposit:	10 June 2024
Date of Acceptance:	2024
