Interpreting line drawings of objects with K-vertices

Varley, P., Suzuki, H. and Martin, Ralph Robert 2004. Interpreting line drawings of objects with K-vertices. Presented at: Geometric Modeling and Processing 2004, Beijing, China, 13-15 April 2004. Geometric Modeling and Processing 2004 : proceedings. Los Alamitos, CA: IEEE Computer Society, pp. 249-258. 10.1109/GMAP.2004.1290046

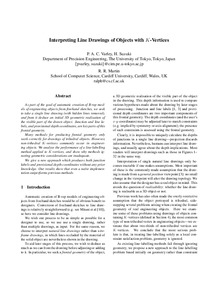

[thumbnail of Kjunctions.pdf]
PDF - Accepted Post-Print Version
Available under License Creative Commons Attribution.

Download (106kB) | Preview


As part of the goal of automatic creation of B-rep models of engineering objects from freehand sketches, we seek to take a single line drawing (with hidden lines removed), and from it deduce an initial 3D geometric realisation of the visible part of the drawn object. Junction and line labels, and provisional depth coordinates, are key parts of this frontal geometry. Many methods for producing frontal geometry only work correctly for drawings of trihedral objects. However, nontrihedral k-vertices commonly occur in engineering objects. We analyse the performance of a line-labelling method applied to k-vertices, and show why methods ignoring geometric considerations are inadequate. We give a new approach which produces both junction labels and provisional depth coordinates without any prior knowledge. Our results show that even a naive implementation outperforms previous methods.
