Iterative surface warping to shape craters in micro-EDM simulation

Surleraux, Anthony, Pernot, Jean-Philippe, Elkaseer, Ahmed and Bigot, Samuel ORCID: https://orcid.org/0000-0002-0789-4727 2016. Iterative surface warping to shape craters in micro-EDM simulation. Engineering with Computers 32 , pp. 517-531. 10.1007/s00366-016-0439-0

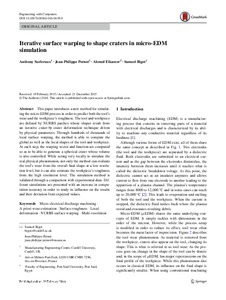

[thumbnail of art_10.1007_s00366-016-0439-0.pdf]
Preview
PDF - Published Version
Available under License Creative Commons Attribution.

Download (1MB) | Preview
License URL: http://creativecommons.org/licenses/by/4.0/legalcode
License Start date: 1 January 2015

Abstract

This paper introduces a new method for simulating the micro-EDM process in order to predict both the tool’s wear and the workpiece’s roughness. The tool and workpiece are defined by NURBS patches whose shapes result from an iterative crater-by-crater deformation technique driven by physical parameters. Through hundreds of thousands of local surface warping, the method is able to compute the global as well as the local shapes of the tool and workpiece. At each step, the warping vector and function are computed so as to be able to generate a spherical crater whose volume is also controlled. While acting very locally to simulate the real physical phenomenon, not only the method can evaluate the tool’s wear from the overall final shape at a low resolution level, but it can also estimate the workpiece’s roughness from the high resolution level. The simulation method is validated through a comparison with experimental data. Different simulations are presented with an increase in computation accuracy in order to study its influence on the results and their deviation from expected values.

Item Type: Article
Date Type: Publication
Status: Published
Schools: Engineering
Additional Information: This article is distributed under the terms of the Creative Commons Attribution 4.0 International License.
Publisher: Springer Verlag
ISSN: 0177-0667
Funders: EPSRC
Date of First Compliant Deposit: 23 May 2016
Date of Acceptance: 21 December 2015
Last Modified: 05 May 2023 13:58
URI: https://orca.cardiff.ac.uk/id/eprint/91148
