A new Jameson-Schmidt-Turkel Smooth Particle Hydrodynamics algorithm for large strain explicit fast dynamics

Lee, Chun Hean, Gil, Antonio J., Greto, Giorgio, Kulasegaram, Sivakumar ORCID: https://orcid.org/0000-0002-9841-1339 and Bonet, Javier 2016. A new Jameson-Schmidt-Turkel Smooth Particle Hydrodynamics algorithm for large strain explicit fast dynamics. Computer Methods in Applied Mechanics and Engineering 311 , pp. 71-111. 10.1016/j.cma.2016.07.033

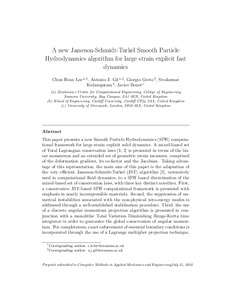

[thumbnail of A_new_JST_SPH_algorithm_for_large_strain_explicit_fast_dynamics_2016.pdf]
Preview
PDF - Accepted Post-Print Version
Available under License Creative Commons Attribution Non-commercial No Derivatives.

Download (15MB) | Preview

Abstract

This paper presents a new Smooth Particle Hydrodynamics (SPH) computational framework for large strain explicit solid dynamics. A mixed-based set of Total Lagrangian conservation laws (Bonet et al., 2015; Gil et al., 2016) is presented in terms of the linear momentum and an extended set of geometric strain measures, comprised of the deformation gradient, its co-factor and the Jacobian. Taking advantage of this representation, the main aim of this paper is the adaptation of the very efficient Jameson–Schmidt–Turkel (JST) algorithm (Jameson et al., 1981) extensively used in computational fluid dynamics, to a SPH based discretisation of the mixed-based set of conservation laws, with three key distinct novelties. First, a conservative JST-based SPH computational framework is presented with emphasis in nearly incompressible materials. Second, the suppression of numerical instabilities associated with the non-physical zero-energy modes is addressed through a well-established stabilisation procedure. Third, the use of a discrete angular momentum projection algorithm is presented in conjunction with a monolithic Total Variation Diminishing Runge–Kutta time integrator in order to guarantee the global conservation of angular momentum. For completeness, exact enforcement of essential boundary conditions is incorporated through the use of a Lagrange multiplier projection technique. A series of challenging numerical examples (e.g. in the near incompressibility regime) are examined in order to assess the robustness and accuracy of the proposed algorithm. The obtained results are benchmarked against a wide spectrum of alternative numerical strategies.

Item Type: Article
Date Type: Publication
Status: Published
Schools: Engineering
Subjects: Q Science > Q Science (General)
Uncontrolled Keywords: Conservation laws; SPH; Instability; JST; Fast dynamics; Incompressibility
Publisher: Elsevier
ISSN: 0045-7825
Funders: NRN
Date of First Compliant Deposit: 24 September 2016
Date of Acceptance: 21 July 2016
Last Modified: 06 Nov 2022 06:16
URI: https://orca.cardiff.ac.uk/id/eprint/94874
