Effective density and volatility of particles sampled from a helicopter gas turbine engine

Olfert, Jason S., Dickau, Matthew, Momenimovahed, Ali, Saffaripour, Meghdad, Thompson, Kevin, Smallwood, Greg, Stettler, Marc E. J., Boies, Adam, Sevcenco, Yura ORCID: https://orcid.org/0000-0002-6489-9903, Crayford, Andrew Philip ORCID: https://orcid.org/0000-0002-6921-4141 and Johnson, Mark 2017. Effective density and volatility of particles sampled from a helicopter gas turbine engine. Aerosol Science and Technology 51 (6) , pp. 704-714. 10.1080/02786826.2017.1292346

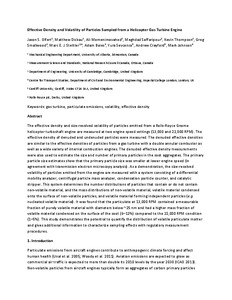

Preview

PDF - Accepted Post-Print Version Download (665kB) | Preview

Abstract

The effective density and size-resolved volatility of particles emitted from a Rolls-Royce Gnome helicopter turboshaft engine are measured at two engine speed settings (13,000 and 22,000 RPM). The effective density of denuded and undenuded particles was measured. The denuded effective densities are similar to the effective densities of particles from a gas turbine with a double annular combustor as well as a wide variety of internal combustion engines. The denuded effective density measurements were also used to estimate the size and number of primary particles in the soot aggregates. The primary particle size estimates show that the primary particle size was smaller at lower engine speed (in agreement with transmission electron microscopy analysis). As a demonstration, the size-resolved volatility of particles emitted from the engine is measured with a system consisting of a differential mobility analyzer, centrifugal particle mass analyzer, condensation particle counter, and catalytic stripper. This system determines the number distributions of particles that contain or do not contain non-volatile material, and the mass distributions of non-volatile material, volatile material condensed onto the surface of non-volatile particles, and volatile material forming independent particles (e.g., nucleated volatile material). It was found that the particulate at 13,000 RPM contained a measurable fraction of purely volatile material with diameters below ∼25 nm and had a higher mass fraction of volatile material condensed on the surface of the soot (6%–12%) compared to the 22,000 RPM condition (1%–5%). This study demonstrates the potential to quantify the distribution of volatile particulate matter and gives additional information to characterize sampling effects with regulatory measurement procedures.

Item Type:	Article
Date Type:	Publication
Status:	Published
Schools:	Engineering
Subjects:	T Technology > TL Motor vehicles. Aeronautics. Astronautics
Publisher:	Taylor & Francis
ISSN:	0278-6826
Date of First Compliant Deposit:	14 March 2017
Date of Acceptance:	27 January 2017
Last Modified:	13 Nov 2023 07:14
URI:	https://orca.cardiff.ac.uk/id/eprint/98711
