A radiographic analysis of anatomical variation at the mandibular of intraoral bone harvesting

Adams, Robert, Hamid, L., Binney, Adrian, Claydon, Nicholas ORCID:, Farnell, Damian ORCID:, Griffiths, B. and Thomas, David ORCID: 2018. A radiographic analysis of anatomical variation at the mandibular of intraoral bone harvesting. Oral Surgery 11 (2) , pp. 105-111. 10.1111/ors.12304

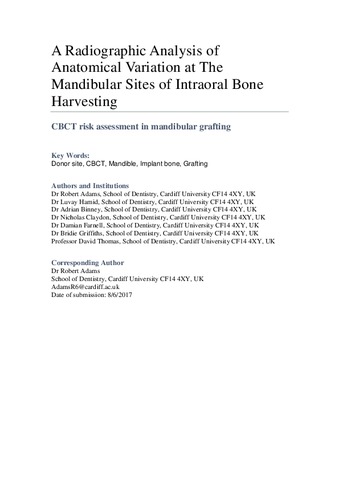

[thumbnail of A Radiographic Analysis of Anatomical Variation at The Mandibular Sites of Intraoral Bone Harvesting.pdf]
PDF - Accepted Post-Print Version
Download (217kB) | Preview


Objectives Intraoral bone grafting is an important component of implant treatment, but also a source of intra- and post-operative complications. This study sought to determine the relationship of bone surface to underlying nerves and vasculature, at the two most commonly employed intraoral sites for bone harvesting. Materials and Methods Data were collected by direct measurement of 103 potential graft sites (50 retromolar sites: 53 symphyseal sites) of patients undergoing CT scanning for implant surgery assessment. Results Symphyseal analysis included 26 female and 27 male patients. Data recorded were as follows: maximal width of the mandible between lower central incisor root tips (mean: 13.7 mm; range: 11.3–16.4 mm), maximal width of the mandible below the canine tip (mean: 11.5 mm; range: 7.7–14.9 mm), tip of canine to mandibular incisive nerve (mean: 4.3 mm; range: 1.2–8.9 mm), canine root tip to outer labial cortex (mean: 4.0 mm; range: 1.9–7.3 mm) and midline distance from the incisive nerve to outer labial cortex (mean: 3.0 mm; range: 1.0–6.9 mm). Retromolar analysis comprised of 33 female and 17 male patients. Data recorded included distance from inferior dental canal to the outer buccal cortex (mean: 3.2 mm; range: 1.0–7.9 mm), the most buccal point of the lower second molar roots to the outer buccal cortex (mean: 3.3 mm; range: 1.0–6.5 mm) and thickness of the mandibular crest at the lower second molar (mean: 13.8; range: 10.2–18.2 mm). Conclusions The proximity of underlying vital structures may be easily overlooked in routine examination of implant patients and may be related to patient characteristics.

Item Type: Article
Date Type: Publication
Status: Published
Schools: Dentistry
Subjects: R Medicine > RK Dentistry
Publisher: Wiley-Blackwell
ISSN: 1752-2471
Date of First Compliant Deposit: 9 August 2018
Date of Acceptance: 15 August 2017
Last Modified: 04 Jan 2024 16:29
