CMOS-compatible multi-band plasmonic TE-pass polarizer

Abadia, Nicolas ORCID: https://orcid.org/0000-0002-7355-4245, Saber, Md. Ghulam, Bello, Frank, Samani, Alireza, El Fiky, Eslam, Wang, Yun, Donegan, John F. and Plant, David V. 2018. CMOS-compatible multi-band plasmonic TE-pass polarizer. Optics Express 26 (23) , pp. 30292-30304. 10.1364/OE.26.030292

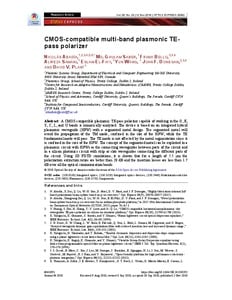

[thumbnail of under the terms of the OSA Open Access Publishing Agreement]
Preview
PDF (under the terms of the OSA Open Access Publishing Agreement) - Published Version
Download (4MB) | Preview

Abstract

A CMOS-compatible plasmonic TE-pass polarizer capable of working in the O, E,S, C, L, and U bands is numerically analyzed. The device is based on an integrated hybrid plasmonic waveguide (HPW) with a segmented metal design. The segmented metal will avoid the propagation of the TM mode, confined in the slot of the HPW, while the TE fundamental mode will pass. The TE mode is not affected by the metal segmentation since it is confined in the core of the HPW. The concept of the segmented metal can be exploited in a plasmonic circuit with HPWs as the connecting waveguides between parts of the circuit and in a silicon photonics circuit with strip or slab waveguides connecting the different parts of the circuit. Using 3D FDTD simulations, it is shown that for a length of 5.5 μm the polarization extinction ratios are better than 20 dB and the insertion losses are less than 1.7dB over all the optical communication bands.

Item Type: Article
Date Type: Publication
Status: Published
Schools: Physics and Astronomy
Subjects: Q Science > QC Physics
Publisher: Optical Society of America
ISSN: 1094-4087
Funders: Engineering and Physical Sciences Council
Date of First Compliant Deposit: 30 October 2018
Date of Acceptance: 10 September 2018
Last Modified: 02 May 2023 11:35
URI: https://orca.cardiff.ac.uk/id/eprint/116359
