Evaluation of pulsed I-V analysis as validation tool of nonlinear RF models of GaN-based HFETs

Hirshy, Hassan ORCID: https://orcid.org/0000-0003-0281-3681, Singh, Manikant, Casbon, Michael A. ORCID: https://orcid.org/0000-0002-8637-9888, Perks, Richard M. ORCID: https://orcid.org/0000-0003-0873-0537, Uren, Michael J., Martin, Trevor, Kuball, Martin and Tasker, Paul J. ORCID: https://orcid.org/0000-0002-6760-7830 2018. Evaluation of pulsed I-V analysis as validation tool of nonlinear RF models of GaN-based HFETs. IEEE Transactions on Electron Devices 65 (12) , pp. 5307-5313. 10.1109/TED.2018.2872513

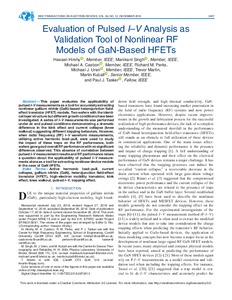

Preview

PDF - Published Version Available under License Creative Commons Attribution. Download (2MB) | Preview

Abstract

This paper evaluates the applicability of pulsed I-V measurements as a tool for accurately extracting nonlinear gallium nitride (GaN)-based heterojunction field-effect transistor (HFET) models. Two wafers with the identical layer structure but different growth conditions have been investigated. A series of I-V measurements was performed under dc and pulsed conditions demonstrating a dramatic difference in the kink effect and current collapse (knee walkout) suggesting different trapping behaviors. However, when radio frequency (RF) I-V waveform measurements, utilizing active harmonic load-pull, were used to study the impact of these traps on the RF performance, both wafers gave good overall RF performance with no significant difference observed. This absence of correlation between pulsed I-V measurement results and RF performance raises a question about the applicability of pulsed I-V measurements alone as a tool for extracting nonlinear device models in the case of GaN HFETs.

Item Type:	Article
Date Type:	Publication
Status:	Published
Schools:	Engineering
Additional Information:	This work is licensed under a Creative Commons Attribution 3.0 License
Publisher:	Institute of Electrical and Electronics Engineers (IEEE)
ISSN:	0018-9383
Date of First Compliant Deposit:	10 January 2019
Date of Acceptance:	26 September 2018
Last Modified:	22 Apr 2024 18:38
URI:	https://orca.cardiff.ac.uk/id/eprint/118199
