Optimization of graph construction can significantly increase the power of structural brain network studies

Messaritaki, Eirini ORCID: https://orcid.org/0000-0002-9917-4160, Dimitriadis, Stavros I. ORCID: https://orcid.org/0000-0002-0000-5392 and Jones, Derek K. ORCID: https://orcid.org/0000-0003-4409-8049 2019. Optimization of graph construction can significantly increase the power of structural brain network studies. NeuroImage 199 , pp. 495-511. 10.1016/j.neuroimage.2019.05.052

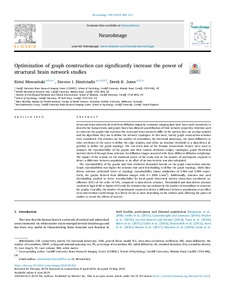

Preview

PDF - Published Version Available under License Creative Commons Attribution. Download (3MB) | Preview

Abstract

Structural brain networks derived from diffusion magnetic resonance imaging data have been used extensively to describe the human brain, and graph theory has allowed quantification of their network properties. Schemes used to construct the graphs that represent the structural brain networks differ in the metrics they use as edge weights and the algorithms they use to define the network topologies. In this work, twenty graph construction schemes were considered. The schemes use the number of streamlines, the fractional anisotropy, the mean diffusivity or other attributes of the tracts to define the edge weights, and either an absolute threshold or a data-driven algorithm to define the graph topology. The test-retest data of the Human Connectome Project were used to compare the reproducibility of the graphs and their various attributes (edges, topologies, graph theoretical metrics) derived through those schemes, for diffusion images acquired with three different diffusion weightings. The impact of the scheme on the statistical power of the study and on the number of participants required to detect a difference between populations or an effect of an intervention was also calculated. The reproducibility of the graphs and their attributes depended heavily on the graph construction scheme. Graph reproducibility was higher for schemes that used thresholding to define the graph topology, while data-driven schemes performed better at topology reproducibility (mean similarities of 0.962 and 0.984 respectively, for graphs derived from diffusion images with s/mm2). Additionally, schemes that used thresholding resulted in better reproducibility for local graph theoretical metrics (intra-class correlation coefficients (ICC) of the order of 0.8), compared to data-driven schemes. Thresholded and data-driven schemes resulted in high (0.86 or higher) ICCs only for schemes that use exclusively the number of streamlines to construct the graphs. Crucially, the number of participants required to detect a difference between populations or an effect of an intervention could change by a factor of two or more depending on the scheme used, affecting the power of studies to reveal the effects of interest.

Item Type:	Article
Date Type:	Publication
Status:	Published
Schools:	Medicine Psychology Cardiff University Brain Research Imaging Centre (CUBRIC)
Additional Information:	This is an open access article under the CC-BY license.
Publisher:	Elsevier
ISSN:	1053-8119
Funders:	Wellcome Trust
Date of First Compliant Deposit:	21 May 2019
Date of Acceptance:	19 May 2019
Last Modified:	06 May 2023 04:33
URI:	https://orca.cardiff.ac.uk/id/eprint/122734
