Buckling optimization of blended composite structures using lamination parameters

Liu, Xiaoyang, Featherston, Carol A. ORCID: https://orcid.org/0000-0001-7548-2882 and Kennedy, David ORCID: https://orcid.org/0000-0002-8837-7296 2020. Buckling optimization of blended composite structures using lamination parameters. Thin-Walled Structures 154 , 106861. 10.1016/j.tws.2020.106861

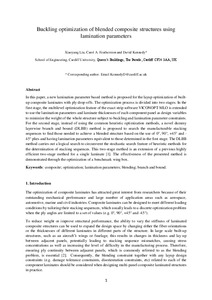

[thumbnail of Buckling optimization of blended composite structures using lamination parameters.pdf]
Preview
PDF - Accepted Post-Print Version
Available under License Creative Commons Attribution Non-commercial No Derivatives.

Download (1MB) | Preview

Abstract

In this paper, a new lamination parameter based method is proposed for the layup optimization of built-up composite laminates with ply drop-offs. The optimization process is divided into two stages. In the first stage, the multilevel optimization feature of the exact strip software VICONOPT MLO is extended to use the lamination parameters and laminate thicknesses of each component panel as design variables to minimize the weight of the whole structure subject to buckling and lamination parameter constraints. For the second stage, instead of using the common heuristic optimization methods, a novel dummy layerwise branch and bound (DLBB) method is proposed to search the manufacturable stacking sequences to find those needed to achieve a blended structure based on the use of 0°, 90°, +45° and −45° plies and having lamination parameters equivalent to those determined in the first stage. The DLBB method carries out a logical search to circumvent the stochastic search feature of heuristic methods for the determination of stacking sequences. This two-stage method is an extension of a previous highly efficient two-stage method for a single laminate (Liu et al., 2019) [1]. The effectiveness of the presented method is demonstrated through the optimization of a benchmark wing box.

Item Type: Article
Date Type: Publication
Status: Published
Schools: Engineering
Publisher: Elsevier
ISSN: 0263-8231
Date of First Compliant Deposit: 22 September 2020
Date of Acceptance: 26 May 2020
Last Modified: 28 Mar 2024 21:20
URI: https://orca.cardiff.ac.uk/id/eprint/134902
