Multi-stage supply restoration of active distribution networks with SOP integration

Jian, Jie, Li, Peng, Yu, Hao, Ji, Haoran, Ji, Jie, Song, Guanyu, Yan, Jinyue, Wu, Jianzhong and Wang, Chengshan 2022. Multi-stage supply restoration of active distribution networks with SOP integration. Sustainable Energy, Grids and Networks 29 , 100562. 10.1016/j.segan.2021.100562
Item availability restricted.

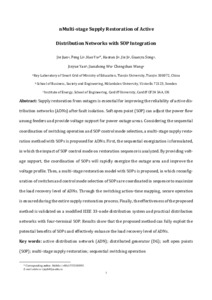

[thumbnail of Paper_SEGAN-D-21-00732_without changes marked(1)1.pdf] PDF - Accepted Post-Print Version
Restricted to Repository staff only until 10 November 2022 due to copyright restrictions.
Available under License Creative Commons Attribution No Derivatives.

Download (596kB)


Supply restoration from outages is essential for improving the reliability of active distribution networks (ADNs) after fault isolation. Soft open point (SOP) can adjust the power flow among feeders and provide voltage support for power outage areas. Considering the sequential coordination of switching operation and SOP control mode selection, a multi-stage supply restoration method with SOPs is proposed for ADNs. First, the sequential energization is formulated, in which the impact of SOP control mode on restoration sequence is analyzed. By providing voltage support, the coordination of SOPs will rapidly energize the outage area and improve the voltage profile. Then, a multi-stage restoration model with SOPs is proposed, in which reconfiguration of switches and control mode selection of SOPs are coordinated in sequence to maximize the load recovery level of ADNs. Through the switching action-time mapping, secure operation is ensured during the entire supply restoration process. Finally, the effectiveness of the proposed method is validated on a modified IEEE 33-node distribution system and practical distribution networks with four-terminal SOP. Results show that the proposed method can fully exploit the potential benefits of SOPs and effectively enhance the load recovery level of ADNs.

Item Type: Article
Date Type: Publication
Status: Published
Schools: Engineering
Publisher: Elsevier
ISSN: 2352-4677
Date of First Compliant Deposit: 22 February 2022
Date of Acceptance: 6 November 2021
