A hybrid modular interline current flow controller for meshed HVDC grids

Zhang, Shuxin, Li, Binbin ORCID:, Wang, Wei, Zhang, Yujie, Xu, Dianguo, Li, Gen ORCID: and Liang, Jun ORCID: 2022. A hybrid modular interline current flow controller for meshed HVDC grids. IEEE Transactions on Industrial Electronics 69 (10) , pp. 10055-10065.

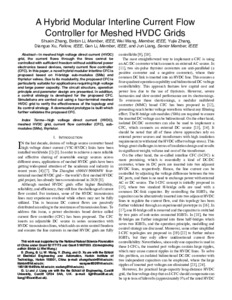

[thumbnail of TIE manuscript.pdf]
PDF - Accepted Post-Print Version
Download (13MB) | Preview


In meshed high voltage direct current (HVDC) grid, the current flows through the lines cannot be controlled with sufficient freedom without additional power electronics based devices, namely current flow controller (CFC). In this paper, a novel hybrid modular interline CFC is proposed based on H-bridge sub-modules (SMs) and thyristor valves. Due to its modularity, the proposed CFC is particularly suitable for applications requiring high voltage and large power capacity. The circuit structure, operation principle and parameter design are presented. In addition, a control strategy is developed for the proposed CFC. Simulations are carried out using a four-terminal meshed HVDC grid to verify the effectiveness of the topology and its control strategy. A downscaled prototype is built which further validates the proposed CFC.

Item Type: Article
Date Type: Publication
Status: Published
Schools: Engineering
Publisher: Institute of Electrical and Electronics Engineers
ISSN: 0278-0046
Date of First Compliant Deposit: 23 December 2021
Date of Acceptance: 19 December 2021
