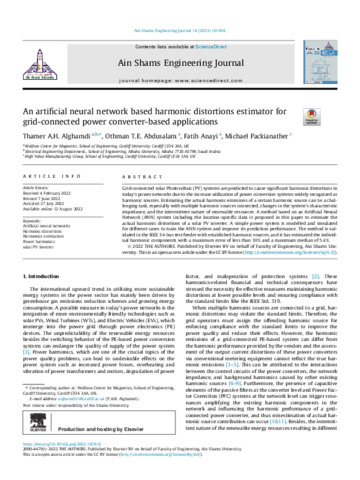

An artificial neural network based harmonic distortions estimator for grid- connected power converter-based applications

Alghamdi, Thamer A.H., Abdusalam, Othman T.E., Anayi, Fatih ORCID: https://orcid.org/0000-0001-8408-7673 and Packianather, Michael ORCID: https://orcid.org/0000-0002-9436-8206 2023. An artificial neural network based harmonic distortions estimator for grid- connected power converter-based applications. Ain Shams Engineering Journal 14 (4) , 101916. 10.1016/j.asej.2022.101916

Preview

PDF - Published Version Available under License Creative Commons Attribution. Download (4MB) | Preview

Abstract

Grid-connected solar Photovoltaic (PV) systems are predicted to cause significant harmonic distortions in today’s power networks due to the increase utilization of power conversion systems widely recognized as harmonic sources. Estimating the actual harmonic emissions of a certain harmonic source can be a challenging task, especially with multiple harmonic sources connected, changes in the system’s characteristic impedance, and the intermittent nature of renewable resources. A method based on an Artificial Neural Network (ANN) system including the location-specific data is proposed in this paper to estimate the actual harmonic distortions of a solar PV inverter. A simple power system is modelled and simulated for different cases to train the ANN system and improve its prediction performance. The method is validated in the IEEE 34-bus test feeder with established harmonic sources, and it has estimated the individual harmonic components with a maximum error of less than 10% and a maximum median of 5.4%.

Item Type:	Article
Date Type:	Publication
Status:	Published
Schools:	Engineering
Publisher:	Elsevier
ISSN:	2090-4479
Date of First Compliant Deposit:	18 August 2022
Date of Acceptance:	27 July 2022
Last Modified:	04 May 2023 14:10
URI:	https://orca.cardiff.ac.uk/id/eprint/151917

Citation Data

Cited 2 times in Scopus. View in Scopus. Powered By Scopus® Data
