A novel design of vibration isolator with high and frequency dependent damping characteristics based on a Large Negative Poisson’s Ratio (LNPR) structure

Wu, Zhangming ORCID: https://orcid.org/0000-0001-7100-3282, Li, Hao and Deng, Zehua 2023. A novel design of vibration isolator with high and frequency dependent damping characteristics based on a Large Negative Poisson’s Ratio (LNPR) structure. Mechanical Systems and Signal Processing 186 , 109818. 10.1016/j.ymssp.2022.109818

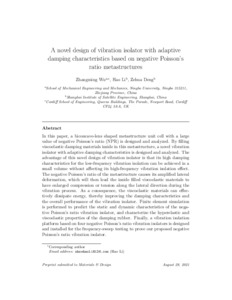

Preview

PDF - Accepted Post-Print Version Available under License Creative Commons Attribution Non-commercial No Derivatives. Download (3MB) | Preview

Abstract

In this paper, a biconcave-lens shaped structure with a large value of negative Poisson’s ratio (LNPR) is proposed. By filling viscoelastic damping materials inside this LNPR structure, a novel vibration isolator with frequency dependent damping characteristics is designed. With this integrated design of negative Poisson’s ratio structural element and viscoelastic materials, the compression and tension of the filled viscoelastic materials will be enlarged by the LNPR structure during a vibration process, which can effectively dissipate the vibrational energy. This proposed novel vibration isolator can achieve large damping characteristics and low vibration transmissibility, particularly when applying in micro-level vibration isolation. Finite element simulation is performed to predict the static and dynamic characteristics of this proposed novel vibration isolator, and characterize the hyperelastic and viscoelastic properties of the damping rubber. Finally, a vibration isolation platform using four proposed vibration isolators is established to perform frequency-sweep testings, with which our proposed design concept of this novel vibration isolator is demonstrated.

Item Type:	Article
Date Type:	Publication
Status:	Published
Schools:	Engineering
Subjects:	T Technology > TA Engineering (General). Civil engineering (General)
Publisher:	Elsevier
ISSN:	0888-3270
Date of First Compliant Deposit:	14 October 2022
Date of Acceptance:	16 September 2022
Last Modified:	20 Nov 2024 02:30
URI:	https://orca.cardiff.ac.uk/id/eprint/153375
