Scanning capacitance microscopy of GaN-based high electron mobility transistor structures: A practical guide

Chen, Chen, Ghosh, Saptarsi, Adams, Francesca, Kappers, Menno J., Wallis, David J. ORCID: and Oliver, Rachel A. 2023. Scanning capacitance microscopy of GaN-based high electron mobility transistor structures: A practical guide. Ultramicroscopy 254 , 113833. 10.1016/j.ultramic.2023.113833

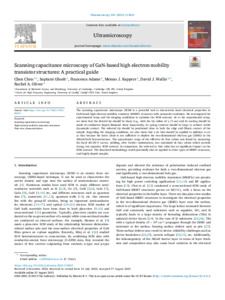

[thumbnail of 1-s2.0-S030439912300150X-main.pdf]
PDF - Published Version
Available under License Creative Commons Attribution.

Download (4MB) | Preview
License URL:
License Start date: 18 August 2023


The scanning capacitance microscope (SCM) is a powerful tool to characterise local electrical properties in GaN-based high electron mobility transistor (HEMT) structures with nanoscale resolution. We investigated the experimental setup and the imaging conditions to optimise the SCM contrast. As to the experimental setup, we show that the desired tip should be sharp (e.g., with the tip radius of ≤ 25 nm ) and its coating should be made of conductive doped diamond. Most importantly, its spring constant should be large to achieve stable tip-sample contact. The selected tip should be positioned close to both the edge and Ohmic contact of the sample. Regarding the imaging conditions, we also show that a dc bias should be applied in addition to an ac bias because the latter alone is not sufficient to deplete the two-dimensional electron gas (2DEG) in the AlGaN/GaN heterostructure. The approximate range of the effective dc bias values was found by measuring the local dC/dV-V curves, yielding, after further optimisation, two optimised dc bias values which provide strong, but opposite, SCM contrast. In comparison, the selected ac bias value has no significant impact on the SCM contrast. The described methodology could potentially also be applied to other types of HEMT structures, and highly-doped samples.

Item Type: Article
Date Type: Publication
Status: Published
Schools: Engineering
Additional Information: License information from Publisher: LICENSE 1: URL:, Start Date: 2023-08-18
Publisher: Elsevier
ISSN: 0304-3991
Date of First Compliant Deposit: 25 August 2023
Date of Acceptance: 17 August 2023
