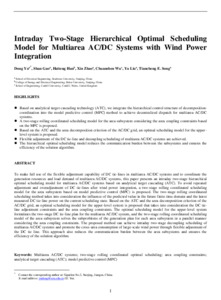

| Yu, Dong, Gao, Shan, Han, Haiteng, Zhao, Xin, Wu, Chuanshen, Liu, Yu and Song, Tiancheng E. 2024. Intraday two-stage hierarchical optimal scheduling model for multiarea AC/DC systems with wind power integration. Applied Energy 364 , 123079. 10.1016/j.apenergy.2024.123079 |
Preview |
PDF
- Accepted Post-Print Version
Download (1MB) | Preview |
Abstract
To make full use of the flexible adjustment capability of DC tie-lines in multiarea AC/DC systems and to coordinate the generation resources and load demand of multiarea AC/DC systems, this paper presents an intraday two-stage hierarchical optimal scheduling model for multiarea AC/DC systems based on analytical target cascading (ATC). To avoid repeated adjustment and overadjustment of DC tie-lines after wind power integration, a two-stage rolling coordinated scheduling model for the area subsystem based on model predictive control (MPC) is proposed. The two-stage rolling coordinated scheduling method takes into consideration the influence of the predicted value in the future finite time domain and the latest measured DC tie-line power on the current scheduling state. Based on the ATC and the area decomposition criterion of the AC/DC grid, an optimal scheduling model for the upper-level system is proposed that takes into consideration the DC tie-line adjustment constraints and the area coupling constraints. The optimal scheduling model for the upper-level system formulates the two-stage DC tie-line plan for the multiarea AC/DC system, and the two-stage rolling coordinated scheduling model of the area subsystem solves the subproblems of the generation plan for each area subsystem in a parallel manner considering the area coupling constraints. The proposed method can achieve intraday two-stage decoupling scheduling of multiarea AC/DC systems and promote the cross-area consumption of large-scale wind power through flexible adjustment of the DC tie line. This approach also reduces the communication burden between the area subsystems and ensures the efficiency of the solution algorithm.
| Item Type: | Article |
|---|---|
| Date Type: | Publication |
| Status: | Published |
| Schools: | Schools > Engineering |
| Publisher: | Elsevier |
| ISSN: | 0306-2619 |
| Date of First Compliant Deposit: | 4 June 2024 |
| Date of Acceptance: | 19 March 2024 |
| Last Modified: | 01 Apr 2025 01:45 |
| URI: | https://orca.cardiff.ac.uk/id/eprint/168168 |
