Experimental and numerical investigation of NH3/H2/N2 combustion in a premixed/stratified swirl burner

Davies, Jordan ORCID: https://orcid.org/0009-0001-7317-2247, Mazzotta, Luca, Sato, Daisuke, Mashruk, Syed, Pugh, Daniel ORCID: https://orcid.org/0000-0002-6721-2265, Borello, Domenico and Valera Medina, Agustin ORCID: https://orcid.org/0000-0003-1580-7133 2025. Experimental and numerical investigation of NH3/H2/N2 combustion in a premixed/stratified swirl burner. Journal of Engineering for Gas Turbines and Power 147 (1) , 011006. 10.1115/1.4066207

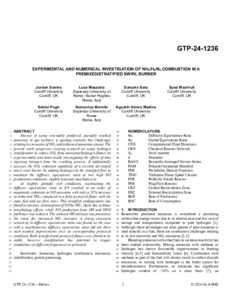

Preview

PDF - Accepted Post-Print Version Available under License Creative Commons Attribution. Download (1MB) | Preview

Abstract

Interest in using renewably produced, partially cracked ammonia in gas turbines is gaining traction, but challenges relating to emissions of NOx and unburned ammonia remain. This work progresses existing research on using hydrogen stratification to reduce NOx from ammonia/hydrogen flames by experimentally and numerically investigating the effects of also injecting nitrogen from the cracking process. It additionally assesses the NOx reduction capability of a recently developed novel swirl burner by adding hydrogen to the stratified flow to maintain the diffusive equivalence ratio at two high NO production conditions, slightly lean and stoichiometric. At slightly globally rich conditions, maintaining the diffusive equivalence ratio at 0.9 resulted in an order of magnitude reduction in NO emissions with only a 33% increase in unburned NH3, compared to a fully premixed flame with the same fuel and air flow rates. This stratified configuration was found to increase consumption of NO by NH2, likely due to flame morphology effects, while NO production from OH and HNO pathways was reduced. The reduced OH intensity was posited as the cause for increased NH3 emission. A strong emissions sensitivity to diffusive equivalence ratio was found, as the case with a stoichiometric diffusive equivalence ratio did not show such marked improvements over its corresponding premixed condition. Both stratified and premixed flames were found to be stable; however, stratification has potential to trigger instabilities at different frequencies to premixed.

Item Type:	Article
Date Type:	Publication
Status:	Published
Schools:	Engineering
Publisher:	American Society of Mechanical Engineers
ISSN:	0742-4795
Funders:	Department for Energy Security and Net Zero (DESNZ) (Grant No. IFS2-06-FLO), EPSRC Centre for Doctoral Training in Resilient Decarbonised Fuel Energy Systems (Grant No. EP/S022996/1; Funder ID: 10.13039/501100000266)., Reaction Engines Ltd., Sunborne Systems Ltd.
Date of First Compliant Deposit:	16 September 2024
Date of Acceptance:	16 July 2024
