An enhanced meshless numerical methodology for modelling pulsed laser ablation of aluminium

Zhong, Zhihao, Kulasegaram, Sivakumar ORCID: https://orcid.org/0000-0002-9841-1339 and Brousseau, Emmanuel ORCID: https://orcid.org/0000-0003-2728-3189 2024. An enhanced meshless numerical methodology for modelling pulsed laser ablation of aluminium. Journal of Manufacturing Processes 131 , pp. 1959-1969. 10.1016/j.jmapro.2024.10.011

Preview

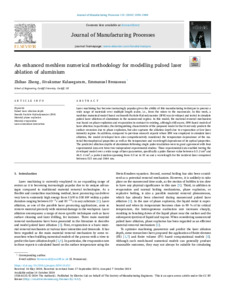

PDF - Published Version Available under License Creative Commons Attribution. Download (4MB) | Preview

Abstract

Laser machining has become increasingly popular given the ability of this manufacturing technique to process a wide range of materials over multiple length scales, i.e., from the micro to the macroscale. In this work, a meshless numerical model based on Smooth Particle Hydrodynamics (SPH) was developed and tested to simulate pulsed laser ablation of aluminium in the nanosecond regime. In this model, the material removal mechanism was based on phase explosion and evaporation in contrast to existing, although still scarce, SPH-based models of laser ablation. In particular, the distinguishing characteristic of the proposed model is that it not only predicts the surface recession due to phase explosion, but also captures the ablation depth due to evaporation at low laser intensity regime. In addition, compared to previous research reports where SPH was employed to simulate laser ablation, the model developed here also comprehensively considered the temperature dependence of the material thermophysical properties as well as the temperature and wavelength dependence of its optical properties. The predicted ablation depths of aluminium following single pulse irradiation were in good agreement with four experimental data sets from two independent experimental studies. These experimental data enabled testing the developed model over a wide range of laser parameters, specifically a pulse fluence value between 0.5 J/cm2 and 46.5 J/cm2, a pulse duration spanning from 0.5 ns to 35 ns and a wavelength for the incident laser comprised between 515 nm and 1064 nm.

Item Type:	Article
Date Type:	Publication
Status:	Published
Schools:	Engineering
Publisher:	Elsevier
ISSN:	1526-6125
Funders:	China Scholarship Council
Date of First Compliant Deposit:	8 October 2024
Date of Acceptance:	7 October 2024
Last Modified:	15 Oct 2024 10:16
URI:	https://orca.cardiff.ac.uk/id/eprint/172726
