Development of an MKID Frequency-to-Pixel LED Mapper for SPT-3G+

Martsen, E. S., Barry, P. S., Benson, B. A., Dibert, K. R., Fichman, K. N., Natoli, T., Rouble, M. and Yu, C. 2025. Development of an MKID Frequency-to-Pixel LED Mapper for SPT-3G+. IEEE Transactions on Applied Superconductivity 35 (5) , 2500104. 10.1109/tasc.2024.3519087

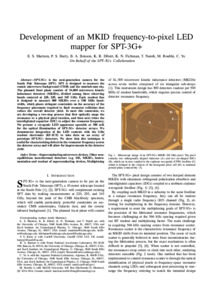

Preview

PDF - Accepted Post-Print Version Download (1MB) | Preview

Abstract

SPT-3G+ is the next-generation camera for the South Pole Telescope (SPT). SPT is designed to measure the cosmic microwave background (CMB) and the mm/sub-mm sky. The planned focal plane consists of 34 000 microwave kinetic inductance detectors (MKIDs), divided among three observing bands centered at 220, 285, and 345 GHz. Each readout line is designed to measure 800 MKIDs over a 500 MHz bandwidth, which places stringent constraints on the accuracy of the frequency placement required to limit resonator collisions that reduce the overall detector yield. To meet this constraint, we are developing a two-step process that first optically maps the resonance to a physical pixel location, and then next trims the interdigitated capacitor (IDC) to adjust the resonator frequency. We present a cryogenic LED apparatus operable at 300 mK for the optical illumination of SPT-3G+ detector arrays. We demonstrate integration of the LED controls with the GHz readout electronics (RF-ICE) to take data on an array of prototype SPT-3G+ detectors. We show that this technique is useful for characterizing defects in the resonator frequency across the detector array and will allow for improvements in the detector yield.

Item Type:	Article
Date Type:	Publication
Status:	Published
Schools:	Physics and Astronomy
Additional Information:	License information from Publisher: LICENSE 1: URL: https://ieeexplore.ieee.org/Xplorehelp/downloads/license-information/IEEE.html, Start Date: 2024-01-01
Publisher:	Institute of Electrical and Electronics Engineers
ISSN:	1051-8223
Date of First Compliant Deposit:	20 January 2025
Date of Acceptance:	12 December 2024
