Bio-inspired flapping wing design via a multi-objective optimization approach based on variable periodic Voronoi tessellation

Li, Zeyang, Gao, Kang and Wu, Zhangming ORCID: https://orcid.org/0000-0001-7100-3282 2025. Bio-inspired flapping wing design via a multi-objective optimization approach based on variable periodic Voronoi tessellation. International Journal of Mechanical Sciences 291-2 , 110160. 10.1016/j.ijmecsci.2025.110160

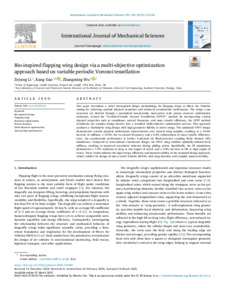

Preview

PDF - Published Version Available under License Creative Commons Attribution. Download (6MB) | Preview

Abstract

This paper introduces a novel bio-inspired design methodology for flapping wings in Micro Air Vehicles aiming for achieving optimal physical properties and enhanced aerodynamic performance. The wing’s truss structures are derived through a specialized non-periodic, meso-micro scale porous structure optimization technique, termed the “Variable-Periodic Voronoi Tessellation (VPVT)” method. By incorporating critical physical properties such as compliance, natural frequency, and mass transfer efficiency, the VPVT method transforms the complex design metrics into a standard multi-objective optimization process. This approach produces a biomimetic wing design with high geometric fidelity to insect wings. The optimized VPVT design demonstrates notable physical performance improvements over natural wing samples, resulting in a 19.6% increase in stiffness, a 12.5% rise in natural frequency, and a 5.2% enhancement in mass transfer efficiency. Later, the aerodynamic performance is further evaluated via fluid–structure coupling finite element (FE) simulations. Compared to conventional commercial design, the VPVT wing exhibits optimally-tailored local stiffness, resulting in improved aeroelastic behavior during gliding action. Specifically, the FE simulations demonstrate a 7.3% reduction in drag at low angles of attack and a 9.9% increase in lift at high angles of attack. These results indicate the high energy efficiency and maneuverability of the proposed design approach, which enables the design of micro aerial vehicles (MAVs) with long duration and complex maneuverability.

Item Type:	Article
Date Type:	Publication
Status:	Published
Schools:	Schools > Engineering
Publisher:	Elsevier
ISSN:	0020-7403
Funders:	EPSRC
Date of First Compliant Deposit:	2 April 2025
Date of Acceptance:	16 March 2025
Last Modified:	08 Apr 2025 11:16
URI:	https://orca.cardiff.ac.uk/id/eprint/177356
