Baramate, Karan A., Mulroy, Samuel, Moore, Aoife, Glen, William, Ktistakis, Charalampos, Lacan, Franck  ORCID: https://orcid.org/0000-0002-3499-5240, Ryan, Michael ORCID: https://orcid.org/0000-0002-8104-0121 and Bhaduri, Debajyoti ORCID: https://orcid.org/0000-0002-8270-388X
2025.

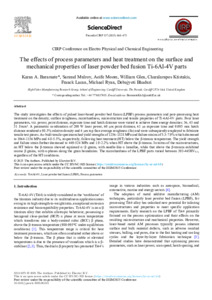

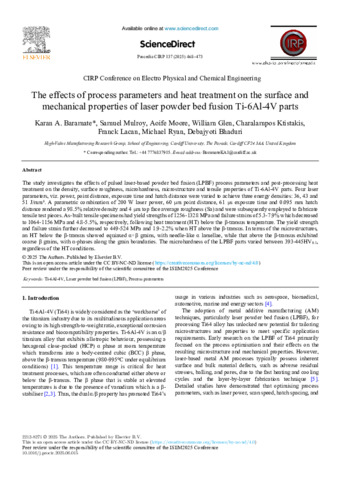

The effects of process parameters and heat treatment on the surface and mechanical properties of laser powder bed fusion Ti-6Al-4V parts.
Presented at: CIRP Conference on Electro Physical and Chemical Machining, ISEM XXII,
Vancouver, Canada,
01-04 June 2025.
Procedia CIRP.
, vol.137
Elsevier,
pp. 468-473.
10.1016/j.procir.2025.06.015
|
Preview |
PDF
- Published Version
Available under License Creative Commons Attribution Non-commercial No Derivatives. Download (2MB) | Preview |
Abstract
The study investigates the effects of pulsed laser-based powder bed fusion (LPBF) process parameters and post-processing heat treatment on the density, surface roughness, microhardness, microstructure and tensile properties of Ti-6Al-4V parts. Four laser parameters, viz. power, point distance, exposure time and hatch distance were varied to achieve three energy densities: 36, 43 and 51 J/mm³. A parametric combination of 200 W laser power, 60 μm point distance, 61 μs exposure time and 0.095 mm hatch distance rendered a 98.5% relative density and 4 μm top face average roughness (Sa) and were subsequently employed to fabricate tensile test pieces. As-built tensile specimens had yield strengths of 1256-1328 MPa and failure strains of 5.3-7.9% which decreased to 1064-1156 MPa and 4.8-5.5%, respectively, following heat treatment (HT) below the β-transus temperature. The yield strength and failure strain further decreased to 449-524 MPa and 1.9-2.2% when HT above the β-transus. In terms of the microstructures, an HT below the β-transus showed equiaxed α+β grains, with needle-like α lamellae, while that above the β-transus exhibited coarse β grains, with α-phases along the grain boundaries. The microhardness of the LPBF parts varied between 393-445HV0.1, regardless of the HT conditions.
| Item Type: | Conference or Workshop Item (Paper) |
|---|---|
| Date Type: | Published Online |
| Status: | Published |
| Schools: | Schools > Engineering |
| Publisher: | Elsevier |
| Date of First Compliant Deposit: | 18 April 2025 |
| Date of Acceptance: | 11 March 2025 |
| Last Modified: | 08 Oct 2025 10:45 |
| URI: | https://orca.cardiff.ac.uk/id/eprint/177799 |
