Performance analysis and control-coordinated improvement method for distance protection of energy storage station grid-connected lines

He, Jiawei, Bu, Ningjing, Wen, Weijie, Li, Bin, Zhang, Shouhang, Zhou, Bo and Wu, Jianzhong ORCID: https://orcid.org/0000-0001-7928-3602 2025. Performance analysis and control-coordinated improvement method for distance protection of energy storage station grid-connected lines. Applied Energy 388 , 125515. 10.1016/j.apenergy.2025.125515 Item availability restricted.

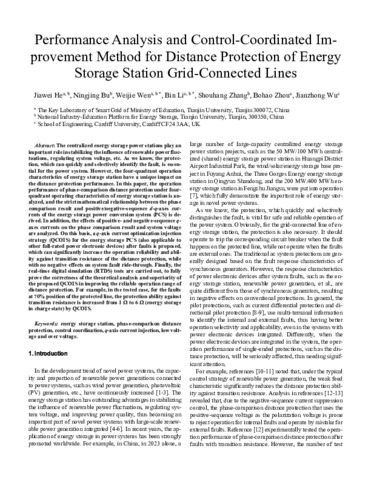

PDF - Accepted Post-Print Version Restricted to Repository staff only until 9 March 2026 due to copyright restrictions. Available under License Creative Commons Attribution Non-commercial No Derivatives. Download (15MB)

Abstract

The centralized energy storage power stations play an important role in stabilizing the influence of renewable power fluctuations, regulating system voltage, etc. As we know, the protection, which can quickly and selectively identify the fault, is essential for the power system. However, the four-quadrant operation characteristics of energy storage station have a unique impact on the distance protection performance. In this paper, the operation performance of phase-comparison distance protection under four-quadrant operating characteristics of energy storage station is analyzed, and the strict mathematical relationship between the phase comparison result and positive/negative-sequence d-q-axes currents of the energy storage power conversion system (PCS) is derived. In addition, the effects of positive- and negative-sequence q-axes currents on the phase comparison result and system voltage are analyzed. On this basis, a q-axis current optimization injection strategy (QCOIS) for the energy storage PCS (also applicable to other full-rated power electronic devices) after faults is proposed, which can significantly increase the operation reliability and ability against transition resistance of the distance protection, while with no negative effects on system fault ride-through. Finally, the real-time digital simulation (RTDS) tests are carried out, to fully prove the correctness of the theoretical analysis and superiority of the proposed QCOIS in improving the reliable operation range of distance protection. For example, in the tested case, for the faults at 70 % position of the protected line, the protection ability against transition resistance is increased from 1 Ω to 6 Ω (energy storage in charge state) by QCOIS.

Item Type:	Article
Date Type:	Publication
Status:	Published
Schools:	Schools > Engineering
Subjects:	T Technology > TK Electrical engineering. Electronics Nuclear engineering
Publisher:	Elsevier
ISSN:	0306-2619
Date of First Compliant Deposit:	14 August 2025
Date of Acceptance:	9 February 2025
Last Modified:	14 Aug 2025 15:00
URI:	https://orca.cardiff.ac.uk/id/eprint/180414
