Three-Dimensional Magnetic Resonance Imaging of the Phakic Crystalline Lens during Accommodation

Sheppard, A. L., Evans, Christopher John ORCID: https://orcid.org/0000-0002-6619-4245, Singh, Krish Devi ORCID: https://orcid.org/0000-0002-3094-2475, Wolffsohn, J. S., Dunne, M. C. M. and Davies, L. N. 2011. Three-Dimensional Magnetic Resonance Imaging of the Phakic Crystalline Lens during Accommodation. Investigative Ophthalmology & Visual Science 52 (6) , pp. 3689-3697. 10.1167/iovs.10-6805

Preview

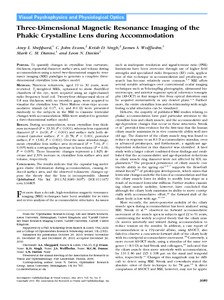

PDF - Published Version Download (642kB) | Preview

Abstract

Purpose. To quantify changes in crystalline lens curvature, thickness, equatorial diameter, surface area, and volume during accommodation using a novel two-dimensional magnetic resonance imaging (MRI) paradigm to generate a complete three-dimensional crystalline lens surface model. Methods. Nineteen volunteers, aged 19 to 30 years, were recruited. T2-weighted MRIs, optimized to show fluid-filled chambers of the eye, were acquired using an eight-channel radio frequency head coil. Twenty-four oblique-axial slices of 0.8 mm thickness, with no interslice gaps, were acquired to visualize the crystalline lens. Three Maltese cross–type accommodative stimuli (at 0.17, 4.0, and 8.0 D) were presented randomly to the subjects in the MRI to examine lenticular changes with accommodation. MRIs were analyzed to generate a three-dimensional surface model. Results. During accommodation, mean crystalline lens thickness increased (F = 33.39, P < 0.001), whereas lens equatorial diameter (F = 24.00, P < 0.001) and surface radii both decreased (anterior surface, F = 21.78, P < 0.001; posterior surface, F = 13.81, P < 0.001). Over the same stimulus range, mean crystalline lens surface area decreased (F = 7.04, P < 0.005) with a corresponding increase in lens volume (F = 6.06, P = 0.005). These biometric changes represent a 1.82% decrease and 2.30% increase in crystalline lens surface area and volume, respectively. Conclusions. The results indicate that the capsular bag undergoes elastic deformation during accommodation, causing reduced surface area, and the observed volumetric changes oppose the theory that the lens is incompressible.

Item Type:	Article
Date Type:	Publication
Status:	Published
Schools:	Cardiff University Brain Research Imaging Centre (CUBRIC) Psychology Neuroscience and Mental Health Research Institute (NMHRI)
Subjects:	B Philosophy. Psychology. Religion > BF Psychology R Medicine > RC Internal medicine > RC0321 Neuroscience. Biological psychiatry. Neuropsychiatry
Additional Information:	Confirmation received by publisher on 21 February 2014 that publisher's pdf can be self-archived 6 months after publication.
Publisher:	Association for Research in Vision and Ophthalmology
ISSN:	0146-0404
Date of First Compliant Deposit:	30 March 2016
Last Modified:	09 May 2023 07:52
URI:	https://orca.cardiff.ac.uk/id/eprint/31069

Citation Data

Cited 57 times in Scopus. View in Scopus. Powered By Scopus® Data
