A strained silicon cold electron bolometer using Schottky contacts

Brien, Thomas Leonard, Ade, Peter A. R. ORCID: https://orcid.org/0000-0002-5127-0401, Barry, Peter, Dunscombe, Christopher, Leadley, David R., Morozov, Dmitry L., Myronov, Maksym, Parker, Evan H. C., Prest, Martin, Mika, Prunnila, Sudiwala, Rashmikant V. ORCID: https://orcid.org/0000-0003-3240-5304, Whall, Terry E. and Mauskopf, Philip Daniel ORCID: https://orcid.org/0000-0001-6397-5516 2014. A strained silicon cold electron bolometer using Schottky contacts. Applied Physics Letters 105 , 043509. 10.1063/1.4892069

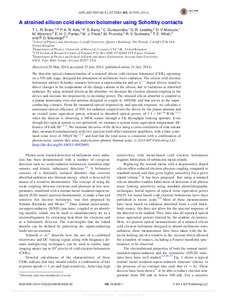

Preview

PDF - Published Version Download (716kB) | Preview

Abstract

We describe optical characterisation of a strained silicon cold electron bolometer (CEB), operating on a 350 mK stage, designed for absorption of millimetre-wave radiation. The silicon cold electron bolometer utilises Schottky contacts between a superconductor and an n++ doped silicon island to detect changes in the temperature of the charge carriers in the silicon, due to variations in absorbed radiation. By using strained silicon as the absorber, we decrease the electron-phonon coupling in the device and increase the responsivity to incoming power. The strained silicon absorber is coupled to a planar aluminium twin-slot antenna designed to couple to 160 GHz and that serves as the superconducting contacts. From the measured optical responsivity and spectral response, we calculate a maximum optical efficiency of 50% for radiation coupled into the device by the planar antenna and an overall noise equivalent power, referred to absorbed optical power, of 1.1E-16 W/rtHz when the detector is observing a 300 K source through a 4 K throughput limiting aperture. Even though this optical system is not optimized, we measure a system noise equivalent temperature difference of 6 mK/rtHz. We measure the noise of the device using a cross-correlation of time stream data, measured simultaneously with two junction field-effect transistor amplifiers, with a base correlated noise level of 300 pV/rtHZ and find that the total noise is consistent with a combination of photon noise, current shot noise, and electron-phonon thermal noise.

Item Type:	Article
Date Type:	Published Online
Status:	Published
Schools:	Physics and Astronomy
Subjects:	Q Science > QC Physics
Uncontrolled Keywords:	detectors, bolometer, astronomical instrumentation, electron cooling
Additional Information:	Pdf uploaded in accordance with publisher's policy at http://www.sherpa.ac.uk/romeo/issn/0003-6951/ (accessed 07.08.14).
Publisher:	American Institute of Physics
ISSN:	0003-6951
Funders:	EPSRC, Academy of Finland
Date of First Compliant Deposit:	30 March 2016
Date of Acceptance:	23 July 2014
Last Modified:	11 Oct 2023 21:39
URI:	https://orca.cardiff.ac.uk/id/eprint/62589
