Augmenting the structures in a swirling flame via diffusive injection

Lewis, Jonathan, Valera Medina, Agustin ORCID: https://orcid.org/0000-0003-1580-7133, Marsh, Richard ORCID: https://orcid.org/0000-0003-2110-5744 and Morris, Steven ORCID: https://orcid.org/0000-0001-5865-8911 2014. Augmenting the structures in a swirling flame via diffusive injection. Journal of Combustion 2014 , 280501. 10.1155/2014/280501

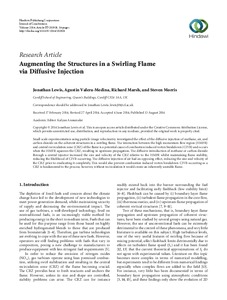

[thumbnail of Augmenting Structure in Swirling Flame 2014.pdf]
Preview
PDF - Published Version
Download (19MB) | Preview

Abstract

Small scale experimentation using particle image velocimetry investigated the effect of the diffusive injection of methane, air, and carbon dioxide on the coherent structures in a swirling flame. The interaction between the high momentum flow region (HMFR) and central recirculation zone (CRZ) of the flame is a potential cause of combustion induced vortex breakdown (CIVB) and occurs when the HMFR squeezes the CRZ, resulting in upstream propagation. The diffusive introduction of methane or carbon dioxide through a central injector increased the size and velocity of the CRZ relative to the HMFR whilst maintaining flame stability, reducing the likelihood of CIVB occurring. The diffusive injection of air had an opposing effect, reducing the size and velocity of the CRZ prior to eradicating it completely. This would also prevent combustion induced vortex breakdown CIVB occurring as a CRZ is fundamental to the process; however, without recirculation it would create an inherently unstable flame.

Item Type: Article
Date Type: Publication
Status: Published
Schools: Engineering
Subjects: T Technology > TA Engineering (General). Civil engineering (General)
Additional Information: Pdf uploaded in accordance with the publisher’s policy at http://www.sherpa.ac.uk/romeo/issn/2090-1968/ (accessed 20/08/2014)
Publisher: Hindawi
ISSN: 2090-1968
Funders: LCRI
Date of First Compliant Deposit: 30 March 2016
Date of Acceptance: 4 June 2014
Last Modified: 13 Mar 2024 07:27
URI: https://orca.cardiff.ac.uk/id/eprint/63502
