Sweeping of three-dimensional objects

Martin, Ralph Robert and Stephenson, P. C. 1990. Sweeping of three-dimensional objects. Computer Aided Design 22 (4) , pp. 223-234. 10.1016/0010-4485(90)90051-D

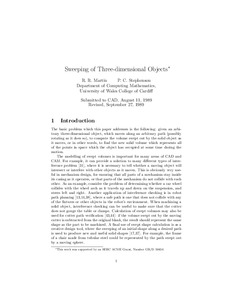

[thumbnail of Swept_volumes.pdf]
Preview
PDF - Accepted Post-Print Version
Download (187kB) | Preview

Abstract

Evaluating the volume swept out by a three-dimensional (3D) object as it moves along an arbitrary path is of interest to many areas of CAD and CAM, such as mechanism design and robot path planning. This paper shows how envelope theory from differential geometry can be used to find the volumes swept out by the individual surfaces of a solid body, and how computer algebra methods may be of use to perform the computations involved. Finally, a new algorithm is presented which shows how the results of sweeping the individual surfaces of a solid body can be combined to form a new 3D model of the swept volume. This algorithm has strong resemblance to hidden line algorithms, but works in one dimension higher.

Item Type: Article
Date Type: Publication
Status: Published
Schools: Computer Science & Informatics
Subjects: Q Science > QA Mathematics > QA75 Electronic computers. Computer science
Uncontrolled Keywords: solid modelling; sweeping; hidden line algorithms; silhouette curves
Publisher: Association for Computing Machinery
ISSN: 1932-2232
Date of First Compliant Deposit: 30 March 2016
Last Modified: 06 Nov 2023 20:16
URI: https://orca.cardiff.ac.uk/id/eprint/63626
