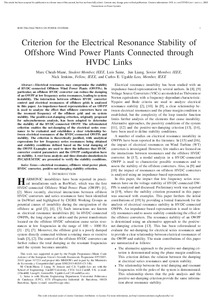

Criterion for the electrical resonance stability of offshore wind power plants connected through HVDC links

Cheah-Mane, Marc, Sainz, Luis, Liang, Jun ORCID: https://orcid.org/0000-0001-7511-449X, Jenkins, Nick ORCID: https://orcid.org/0000-0003-3082-6260 and Ugalde Loo, Carlos Ernesto ORCID: https://orcid.org/0000-0001-6361-4454 2017. Criterion for the electrical resonance stability of offshore wind power plants connected through HVDC links. IEEE Transactions on Power Systems 32 (6) , pp. 4579-4589. 10.1109/TPWRS.2017.2663111

Preview

PDF - Published Version Available under License Creative Commons Attribution. Download (2MB) | Preview

Abstract

Electrical resonances may compromise the stability of HVDC-connected Offshore Wind Power Plants (OWPPs). In particular, an offshore HVDC converter can reduce the damping of an OWPP at low frequency series resonances, leading to system instability. The interaction between offshore HVDC converter control and electrical resonances of offshore grids is analyzed in this paper. An impedance-based representation of an OWPP is used to analyze the effect that offshore converters have on the resonant frequency of the offshore grid and on system stability. The positive-net-damping criterion, originally proposed for subsynchronous analysis, has been adapted to determine the stability of the HVDC-connected OWPP. The reformulated criterion enables the net-damping of the electrical series resonance to be evaluated and establishes a clear relationship between electrical resonances of the HVDC-connected OWPPs and stability. The criterion is theoretically justified, with analytical expressions for low frequency series resonances being obtained and stability conditions defined based on the total damping of the OWPP. Examples are used to show the influence that HVDC converter control parameters and the OWPP configuration have on stability. A root locus analysis and time-domain simulations in PSCAD/EMTDC are presented to verify the stability conditions.

Item Type:	Article
Date Type:	Publication
Status:	Published
Schools:	Engineering
Subjects:	T Technology > TA Engineering (General). Civil engineering (General)
Uncontrolled Keywords:	positive-net-damping stability criterion, electrical resonance, offshore wind power plant, HVDC converter
Additional Information:	This is an open access article under the terms of the CC-BY Attribution 4.0 International license.
Publisher:	Institute of Electrical and Electronics Engineers (IEEE)
ISSN:	0885-8950
Date of First Compliant Deposit:	31 January 2017
Date of Acceptance:	28 January 2017
Last Modified:	06 Nov 2023 22:12
URI:	https://orca.cardiff.ac.uk/id/eprint/97912
