Chang, Ting-Yuan, Kim, Hyunseok, Zutter, Brian T., Lee, Wook-Jae, Regan, Brian C. and Huffaker, Diana L. ![]() |

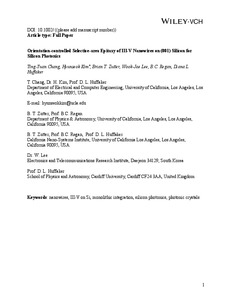

Preview |
PDF
- Accepted Post-Print Version
Download (2MB) | Preview |
Abstract
Monolithic integration of III–V nanowires on silicon platforms has been regarded as a promising building block for many on‐chip optoelectronic, nanophotonic, and electronic applications. Although great advances have been made from fundamental material engineering to realizing functional devices, one of the remaining challenges for on‐chip applications is that the growth direction of nanowires on Si(001) substrates is difficult to control. Here, catalyst‐free selective‐area epitaxy of nanowires on (001)‐oriented silicon‐on‐insulator (SOI) substrates with the nanowires aligned to desired directions is proposed and demonstrated. This is enabled by exposing {111} planes on (001) substrates using wet chemical etching, followed by growing nanowires on the exposed planes. The formation of nanowire array‐based bottom‐up photonic crystal cavities on SOI(001) and their coupling to silicon waveguides and grating couplers, which support the feasibility for on‐chip photonic applications are demonstrated. The proposed method of integrating position‐ and orientation‐controllable nanowires on Si(001) provides a new degree of freedom in combining functional and ultracompact III–V devices with mature silicon platforms.
Item Type: | Article |
---|---|
Date Type: | Publication |
Status: | Published |
Schools: | Physics and Astronomy |
Publisher: | Wiley |
ISSN: | 1616-301X |
Date of First Compliant Deposit: | 9 June 2020 |
Date of Acceptance: | 2 June 2020 |
Last Modified: | 18 Nov 2024 06:00 |
URI: | https://orca.cardiff.ac.uk/id/eprint/132269 |
