Removal of copper corrosion products from archaeological copper alloys using a Q-switch Nd:YAG 1064 laser: impact on selected corrosion products

Watkinson, David ORCID:, Smith, William and Emmerson, Nicola ORCID: 2020. Removal of copper corrosion products from archaeological copper alloys using a Q-switch Nd:YAG 1064 laser: impact on selected corrosion products. Presented at: European Corrosion Congress 2020, Virtual, 7-11 September 2020.

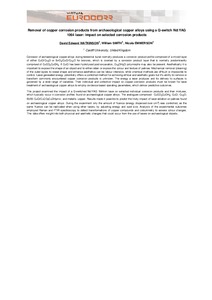

[thumbnail of Abstract]
PDF (Abstract) - Published Version
Download (37kB) | Preview


Corrosion of archaeological copper alloys during terrestrial burial normally produces a corrosion product profile comprised of a mixed layer of either CuCl/Cu2O or SnO2/CuCl/Cu2O for bronzes, which is overlaid by a corrosion product layer that is normally predominantly comprised of CuCO3CuOH2. If CuCl has been hydrolysed post excavation, Cu2OH3Cl polymorphs may also be present. Aesthetically it is important to expose the shape of an object and to either retain or expose the colour and texture of patinas. Mechanical removal (cleaning) of the outer layers to reveal shape and enhance aesthetics can be labour intensive, while chemical methods are difficult or impossible to control. Laser generated energy potentially offers a controlled method for achieving ethical and aesthetic goals but it’s ability to remove or transform commonly encountered copper corrosion products is unknown. The energy a laser produces and its delivery to surfaces is governed by a wide range of variables. Their individual and collective impact on copper corrosion products must be known for laser treatment of archaeological copper alloys to employ evidence-based operating parameters, which deliver predictive outcomes. This project examined the impact of a Q-switched Nd:YAG 1064nm laser on selected individual corrosion products and their mixtures, which typically occur in corrosion profiles found on archaeological copper alloys. The analogues comprised: CuCO3CuOH2; CuCl; Cu2O; 50/50 CuCl/CuCO3CuOH2mix; and metallic copper. Results made it possible to predict the likely impact of laser ablation on patinas found on archaeological copper alloys. During the experiment only the amount of fluence (energy dispersed over cm2) was controlled, as the same fluence can be replicated when using other lasers, by adjusting energy and spot size. Analysis of the experimental outcomes employed Raman and FTIR spectroscopy to detect transformations of copper compounds and colourimetry to assess colour changes. This data offers insight into both physical and aesthetic changes that could occur from the use of lasers on archaeological objects.

Item Type: Conference or Workshop Item (Paper)
Status: In Press
Schools: History, Archaeology and Religion
Subjects: A General Works > AM Museums (General). Collectors and collecting (General)
C Auxiliary Sciences of History > CC Archaeology
Q Science > Q Science (General)
Date of First Compliant Deposit: 10 March 2021
Last Modified: 09 Nov 2022 10:25
