A comparative study between NURBS surfaces and voxels to simulate the wear phenomenon in micro-EDM

Surleraux, Anthony, Pernot, Jean-Phillip and Bigot, Samuel ORCID: https://orcid.org/0000-0002-0789-4727 2016. A comparative study between NURBS surfaces and voxels to simulate the wear phenomenon in micro-EDM. Computer-Aided Design and Applications 13 (6) , pp. 792-798. 10.1080/16864360.2016.1168222

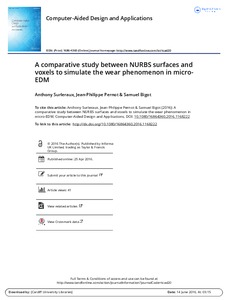

Preview

PDF - Published Version Available under License Creative Commons Attribution. Download (2MB) | Preview

Abstract

The prediction of the tool wear phenomenon in the micro electro discharge machining technology would be of a great use in the optimization of tool shapes. In order to do so, the ability to rapidly and precisely simulate the process is required. The choice of a geometrical model for the electrodes is of the utmost importance as it will condition the available methods for the simulation. Two geometrical models have been tested and implemented: NURBS and voxels embedded in an octree data structure. A limited experimental validation has been conducted and the results compared to the simulation through the use of the Hausdorff metric.

Item Type:	Article
Date Type:	Publication
Status:	Published
Schools:	Schools > Engineering
Publisher:	Taylor & Francis
ISSN:	1686-4360
Funders:	EPSRC
Date of First Compliant Deposit:	14 June 2016
Date of Acceptance:	1 March 2016
Last Modified:	05 May 2023 20:22
URI:	https://orca.cardiff.ac.uk/id/eprint/91823

Citation Data

Cited 2 times in Scopus. View in Scopus. Powered By Scopus® Data
