A modified inverse vector hysteresis model for nonoriented electrical steels considering anisotropy for FEA

Yue, Shuaichao, Anderson, Phil ORCID: https://orcid.org/0000-0001-6500-6583, Li, Yongjian, Yang, Qingxin and Moses, Anthony J. 2021. A modified inverse vector hysteresis model for nonoriented electrical steels considering anisotropy for FEA. IEEE Transactions on Energy Conversion 36 (4) , pp. 3251-3260. 10.1109/TEC.2021.3073349

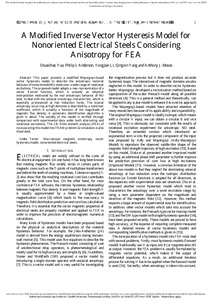

[thumbnail of 09404814.pdf]
Preview
PDF - Accepted Post-Print Version
Download (5MB) | Preview

Abstract

This paper presents a modified Mayergoyz-based vector hysteresis model to describe the anisotropic material behavior of nonoriented (NO) steels over a wide range of rotational excitations. The proposed model adopts a new representation of a vector Everett function, which is actually an elliptical interpolation motivated by the real anisotropic behavior of NO steel, to deal with the uniaxial anisotropy characteristic, which is especially pronounced for low induction levels. The biaxial anisotropy occurring at high densities is described by a nonlinear coefficient, which is actually a function of magnitude of magnetic flux density. A systematic identification algorithm is given in detail. The validity of this model is verified through comparison with experimental data under both alternating and rotational excitations. The 2-D finite element analysis (FEA) of incorporating this model into TEAM problem 32 simulation is also illustrated.

Item Type: Article
Date Type: Publication
Status: Published
Schools: Engineering
Publisher: Institute of Electrical and Electronics Engineers (IEEE)
ISSN: 0885-8969
Date of First Compliant Deposit: 4 May 2021
Date of Acceptance: 16 April 2021
Last Modified: 07 Nov 2023 04:18
URI: https://orca.cardiff.ac.uk/id/eprint/140878
